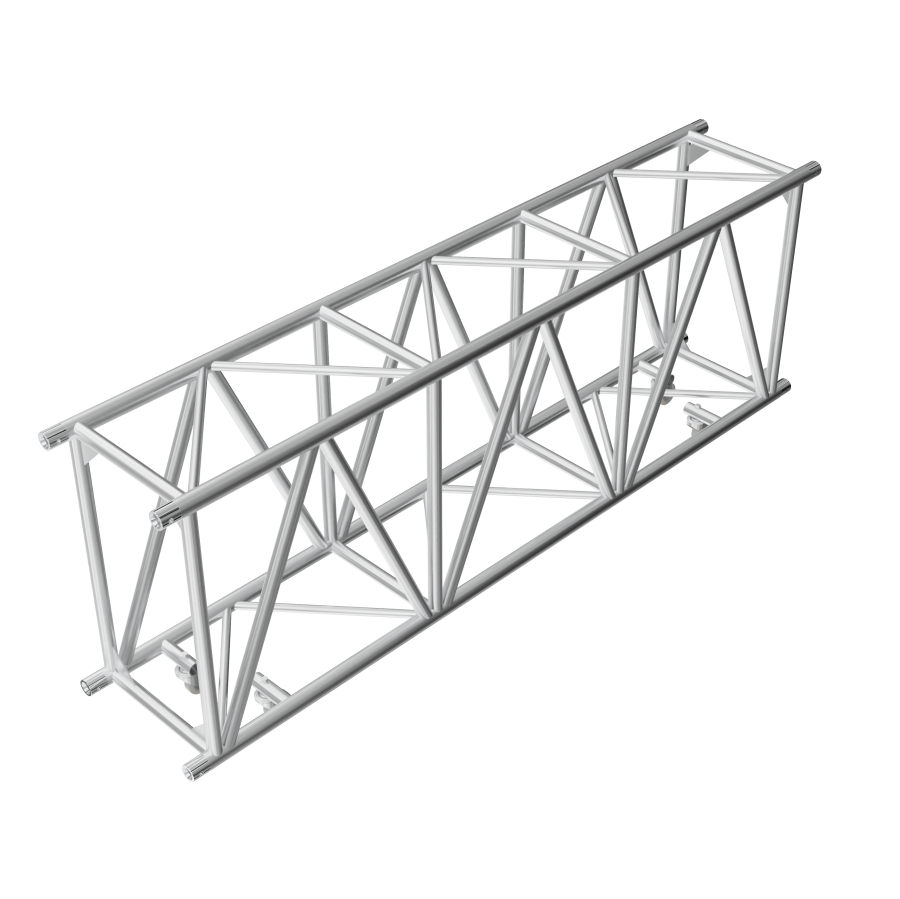

TT104M

The TT104M stands for the largest truss line of spigoted truss with quick lock connection in our offer. This mega truss is perfect for really large stage setups both outdoor and indoor. It is used mostly in touring business as rigging material for rental and production companies at stadium, music halls, festivals etc. Straight segments are equipped with pre-welded castors for wheels for better on ground handling of the bulky trusses.

Key features and benefits:

  • Rectangular truss 580 mm x 1010 mm (22.84 in x 39.76 in)
  • Certified 60 mm x 6 mm (2.4 in x 0.24 in) tube
  • Available in various lengths up to 3 m / 9.84 ft
  • Span loading certified up to 34 m / 111.55 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8038, 8039, 8042
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
Specifications

TUBES

60 mm x 6 mm (2.4 in x 0.24 in)

BRACES

30 mm x 3 mm (1.2 in x 0.12 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
