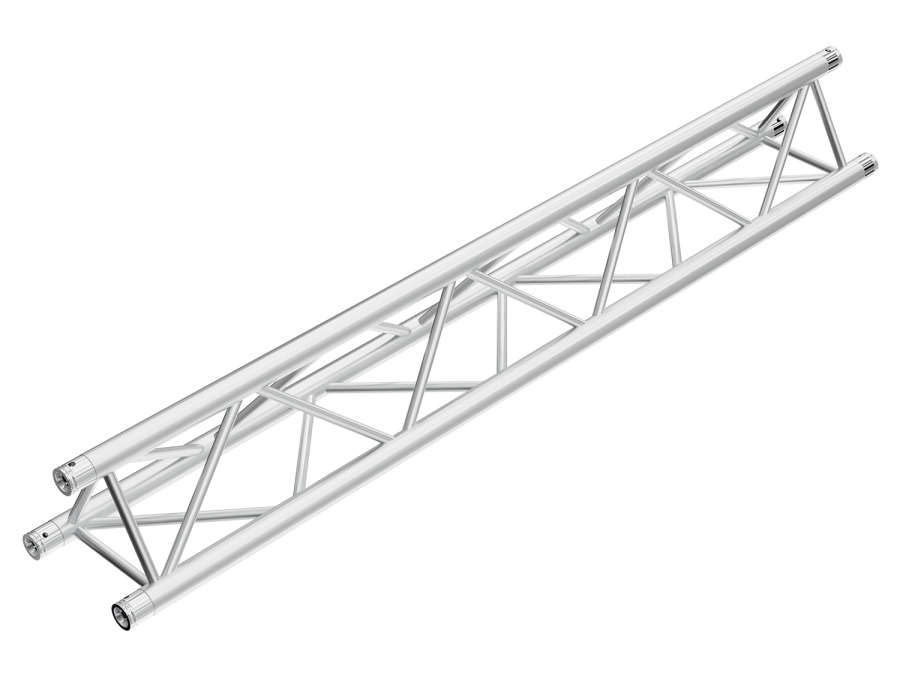

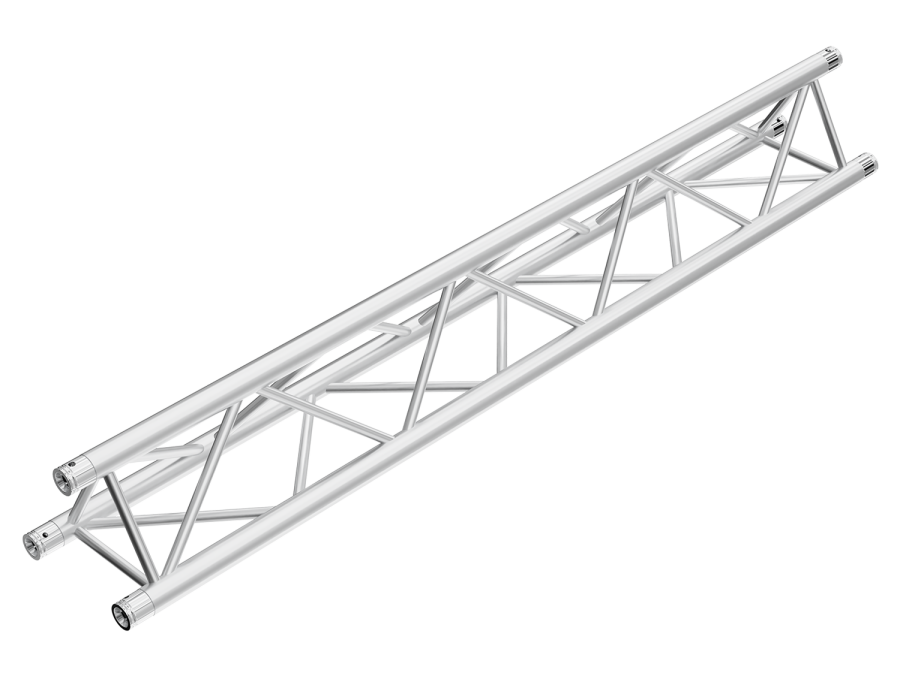

FT33

The FT33 is our best selling triangle truss. Its loading charts are certified by TÜV SÜD and can be used for assembling medium size structures. Its decorative and supportive characteristics make this truss line the right choice for any display booth.

Key features and benefits:

  • 290 mm (11.42 in) triangle truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
