Products / FT Truss / TT44

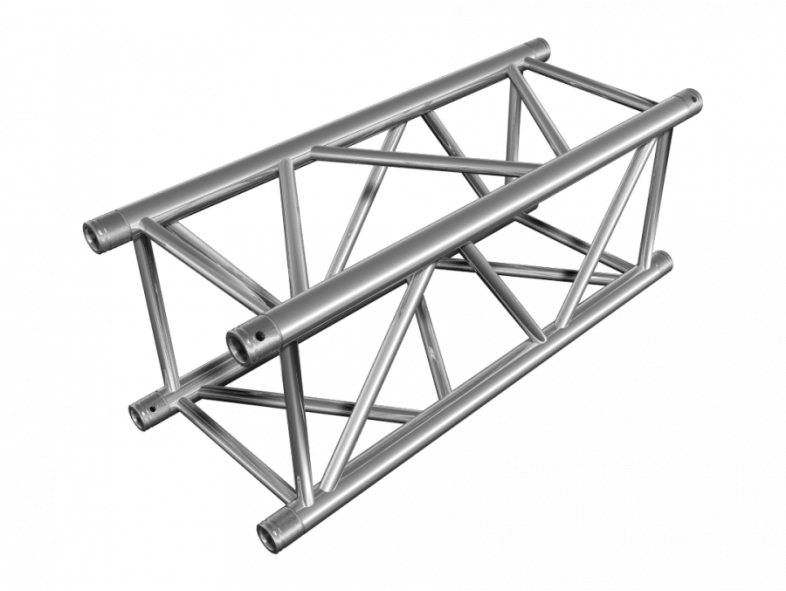

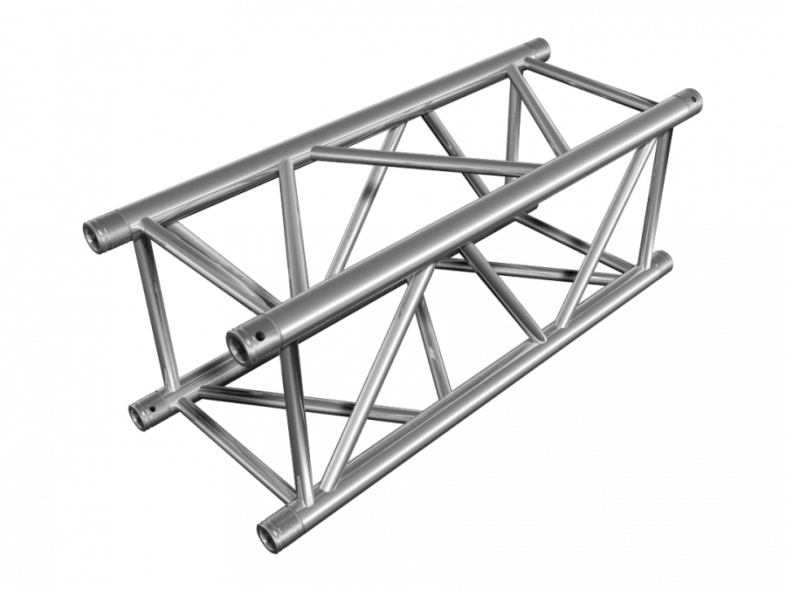

TT44

The TT44 truss line is for super heavy duty use. It was originally used for building high towers for large roof and grid structures. Its horizontal loading capacity is very high and long truss spans can be created with it, while still maintaining proper torque and tensile force resistence.



Key features and benefits:



  • 400 mm (15.75 in) square truss
  • Certified 50 x 4 mm (2 in x 0.16 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 20 m / 65.62 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap clamp compatible (8102-8105)
  • Stack clamps for easy stacking (8106-8107)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 4 mm (2 in x 0.16 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
TÜV Süd TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
