Products / FT Truss / FT34

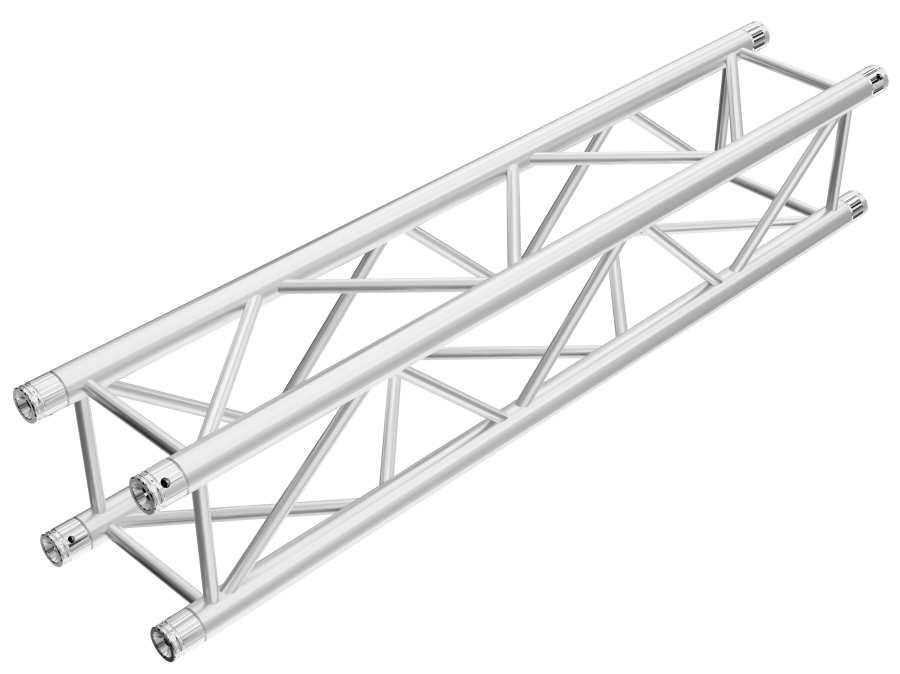

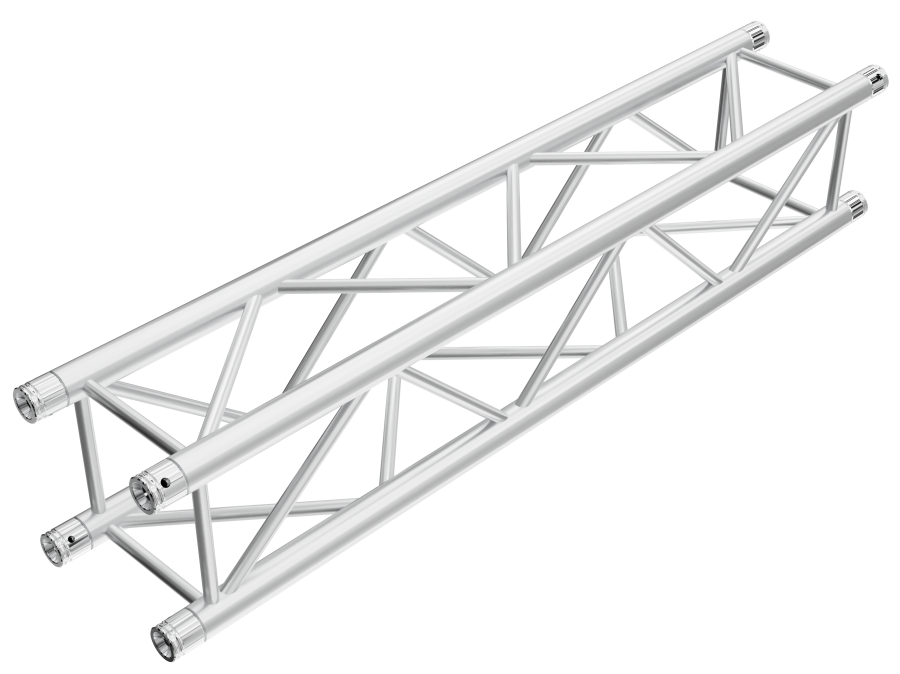

FT34

The FT34 truss line is our best seller. Its loading charts are certified by TÜV SÜD. Impressive loading characteristics and relatively small dimensions of this product line means that this truss can be used for creating simple support beams, large grids, roof systems, tradeshow booths and much more.

Key features and benefits:

  • 290 mm (11.42 in) square truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Stack clamps for easy stacking (8106-8107)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 2 mm (2 x 0.08 in)

BRACES

20 x 2 mm (0.8 x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
