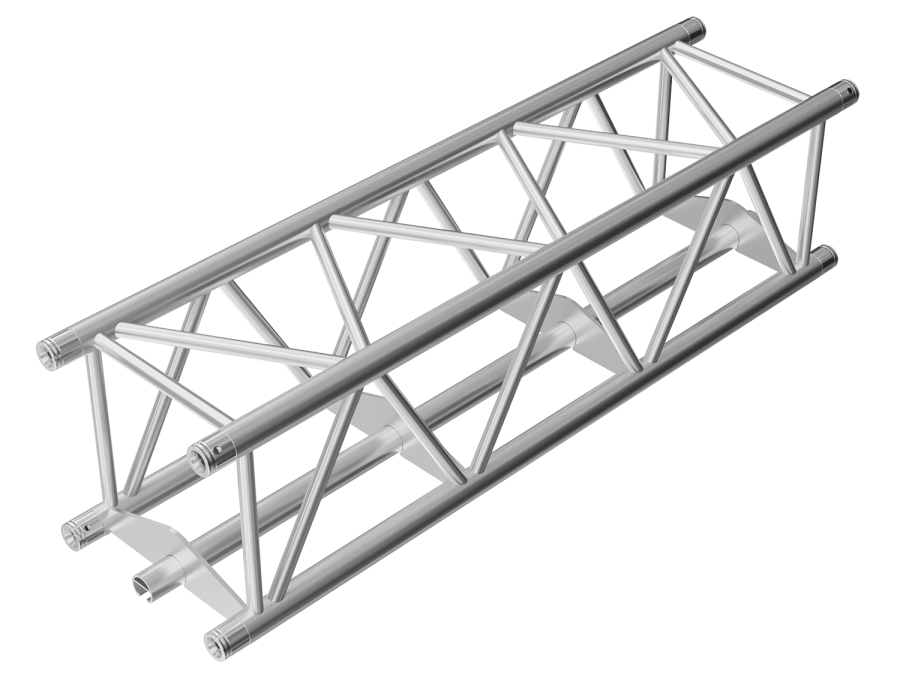

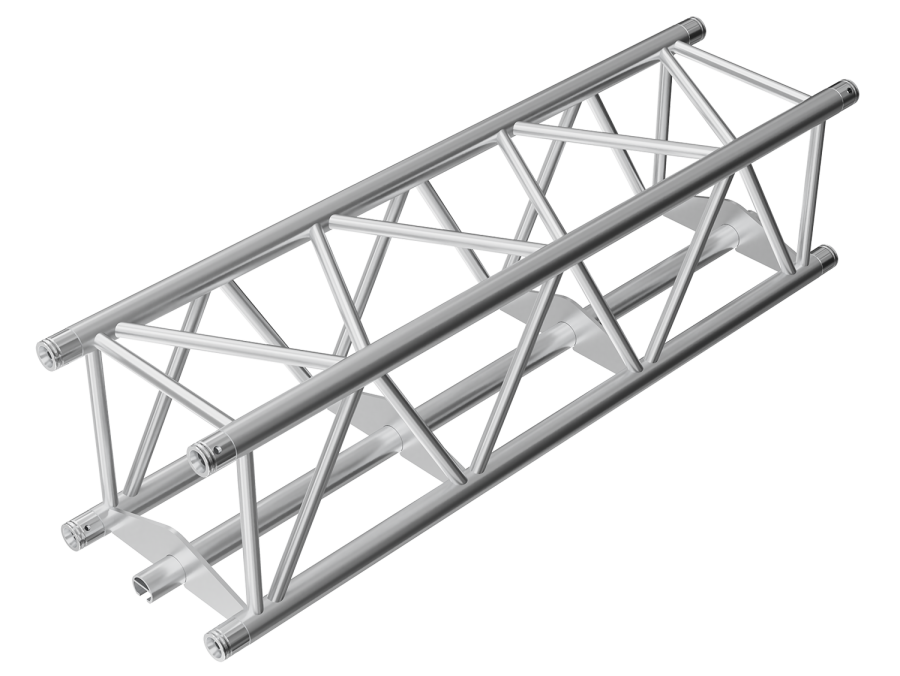

TC45 trusses, thanks to their specifiations, belong to the group of heavy duty trusses with larger dimensions - 400 x 400 mm (16 x 16 in). Exceptionality of these ligthting trusses lies in additon of one extra tube with C-profile into their design. This tube is held in the trusses by strong aluminum plates. Show equipment can be placed to the tube either by using standard clamps (half couplers) or through the application of strong rigging eye that can be safely attached directly into the C-profile tube. Another great advantage of using the rigging eye lies in the possibility of its placement anywhere along the tube.

Key features and benefits:

• 400 mm (15.75 in) square truss
• Certified 50 x 4 mm (2 x 0.16 in) tube
• Aluminum plates 8 mm (0.31 in)
• Available in various lengths up to 3 m / 9.84 ft
• Certified spans up to 24 m / 78.74 ft
• Interior & exterior applications
• Connection kit supplied with straights and corners
• Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
• Claw clamp 50 for in pipe welding on request
• Snap clamp compatible (8102-8105)
• Stack clamps for easy stacking (8106-8107)
• Quicklock connection system for quick and easy assembly
• Powder coat color finish available on request
