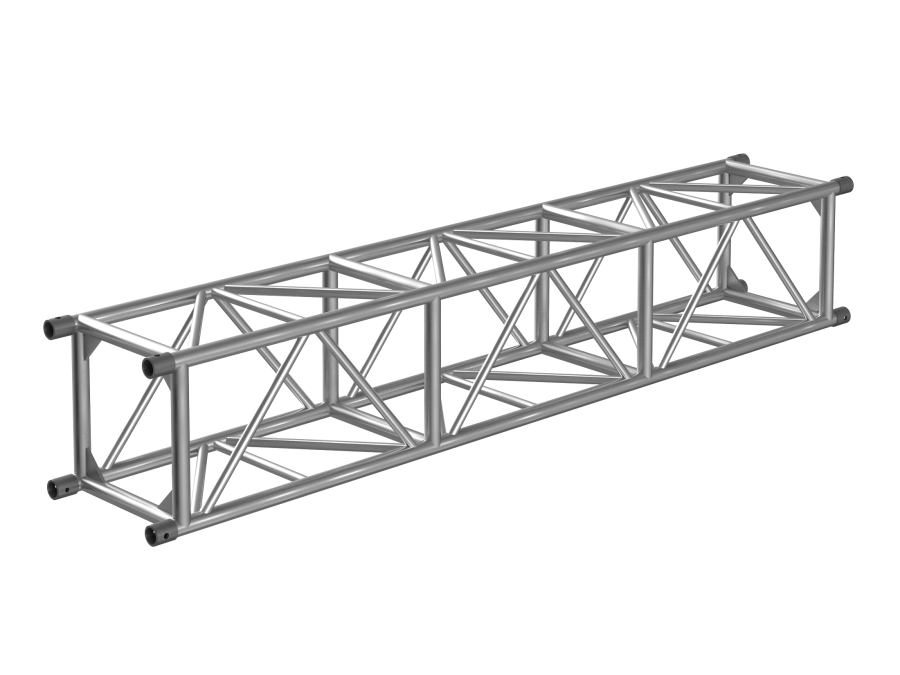

TT54

The TT54 line is super heavy duty truss that was originally used for building high towers in large roof and grid structures. Its horizontal loading charts are extremely high and very long truss spans can be created with it, while still maintaining a substantial loading range, proper torque and tensile force resistence.



Key features and benefits:



  • 520 mm (20.47 in) square truss
  • Certified 50 x 4 mm (2 in x 0.16 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Span loading certified up to 20 m / 65.62 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap clamp compatible (8102-8105)
  • Stack clamps for easy stacking (8106-8107)
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 4 mm (2 in x 0.16 in)

BRACES

30 x 3 mm (1.2 in x 0.12 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
