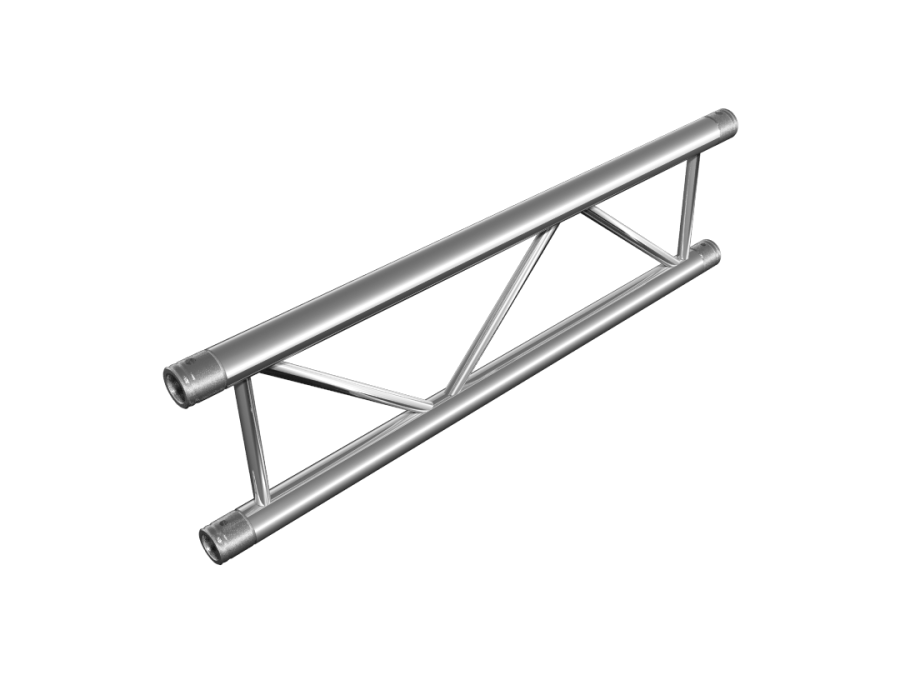

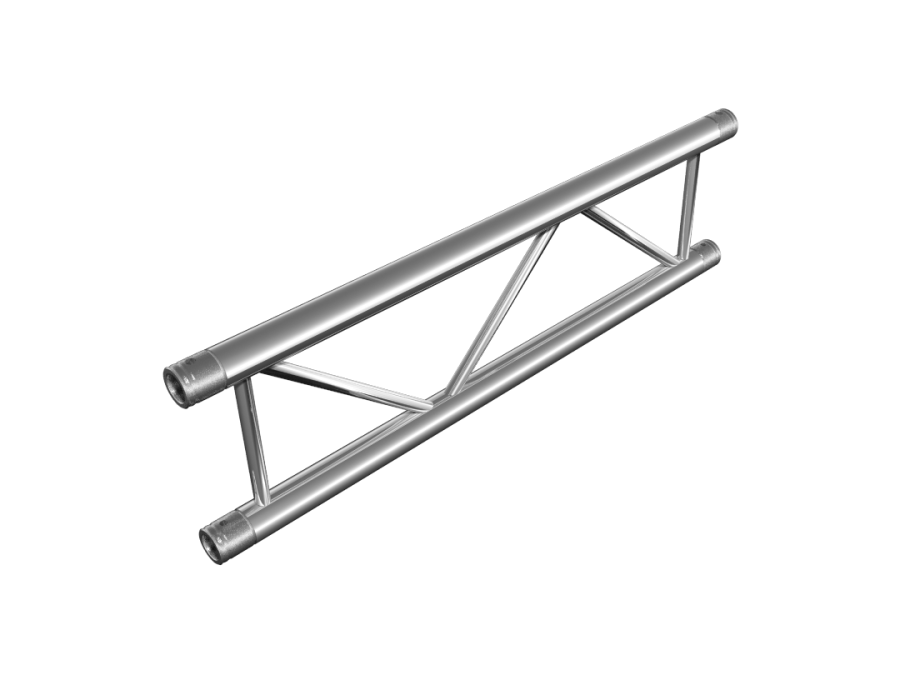

HT32

The HT32 truss line is the heavy duty version of FT32. Larger main tubes increase load capacity. In addition to strength, this truss is easy to stack and transport.

Key features and benefits:

  • 290 mm (11.42 in) ladder truss
  • Certified 50 x 3 mm (2 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 3 mm (2 in x 0.12 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
