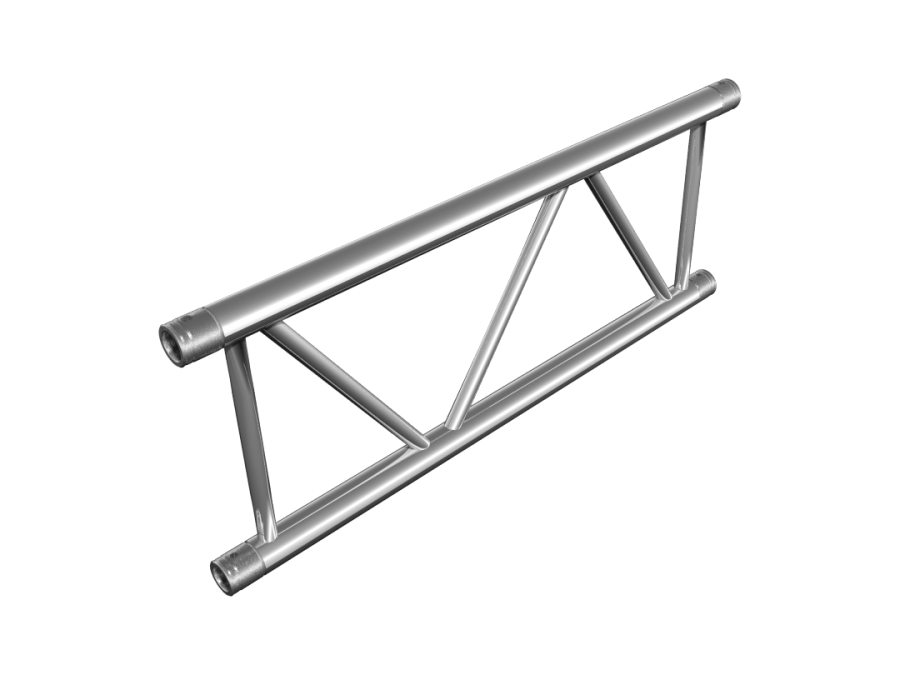

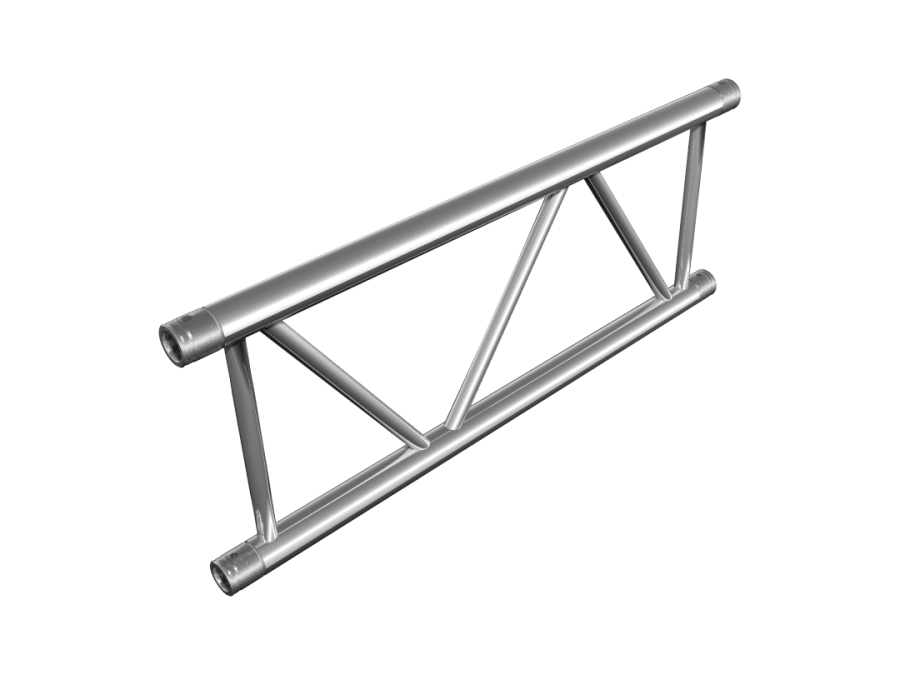

HT42

HT42 is the heavy duty version of FT42. Stronger main pipes enhance loading capacity. One of the main advantages of this truss lies in its stackability. It is the right choice for supportive beams in larger structures. HT42 is often referred to as ladder truss, bisystem, duo truss, I-Beam, double truss, etc.

Key features and benefits:

  • 400 mm (15.75 in) ladder truss
  • Certified 50 x 3 mm (2 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 16 m / 52.49 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 3 mm (2 in x 0.12 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
