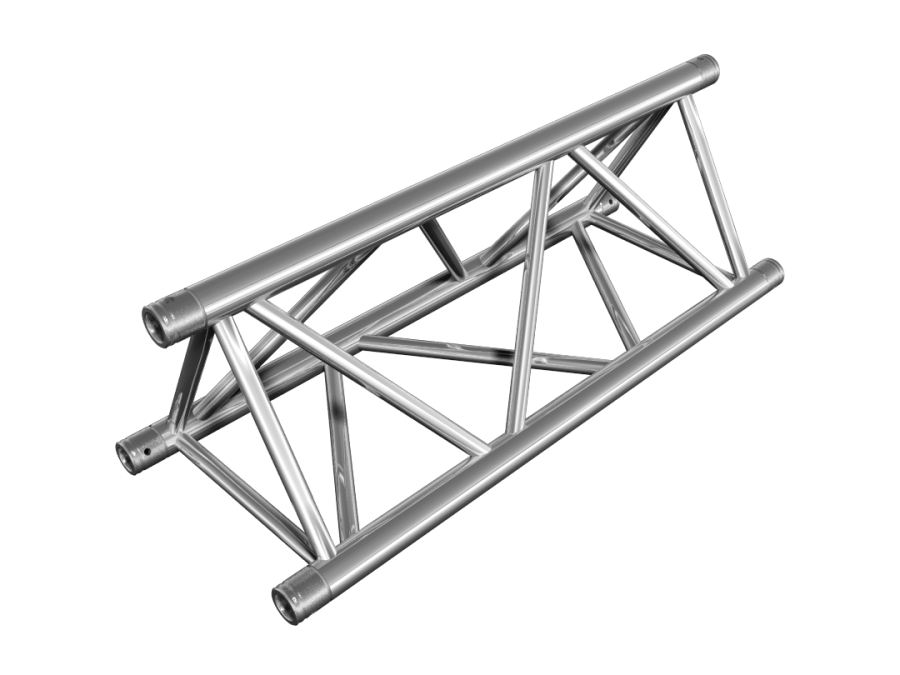

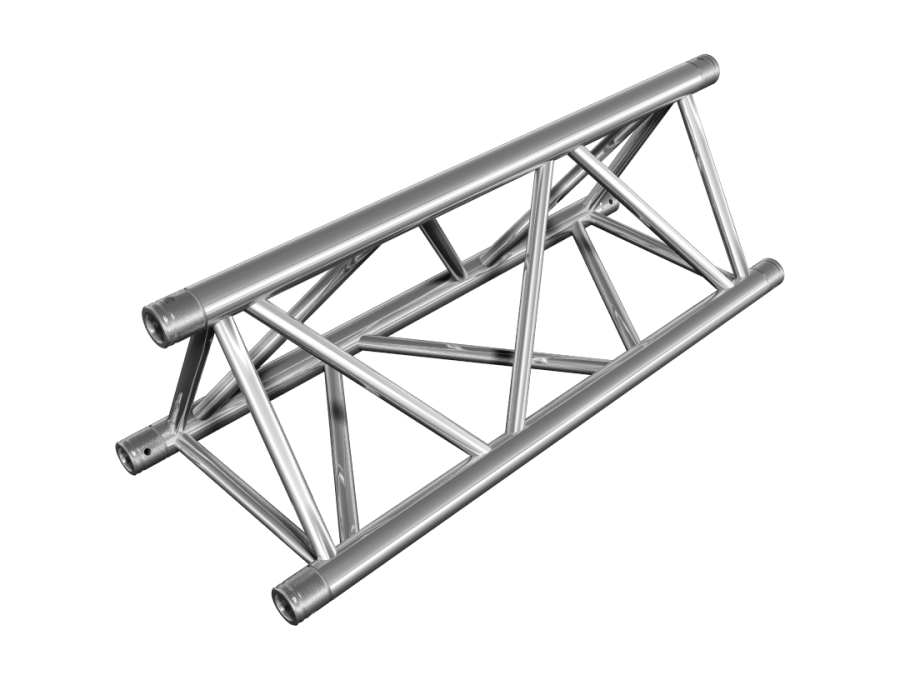

FT43

The FT43 is a larger version in the triangle truss line. It has more loading capacity, which allows it to be used for wider spans or truss beams. Many mid to large scale size structures can be built with it. It is the right choice for longer beams that support equipment in complex structures.

Key features and benefits:

  • 400 mm (15.75 in) triangle truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 16 m / 52.49 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
