Products / FT Truss / FT42

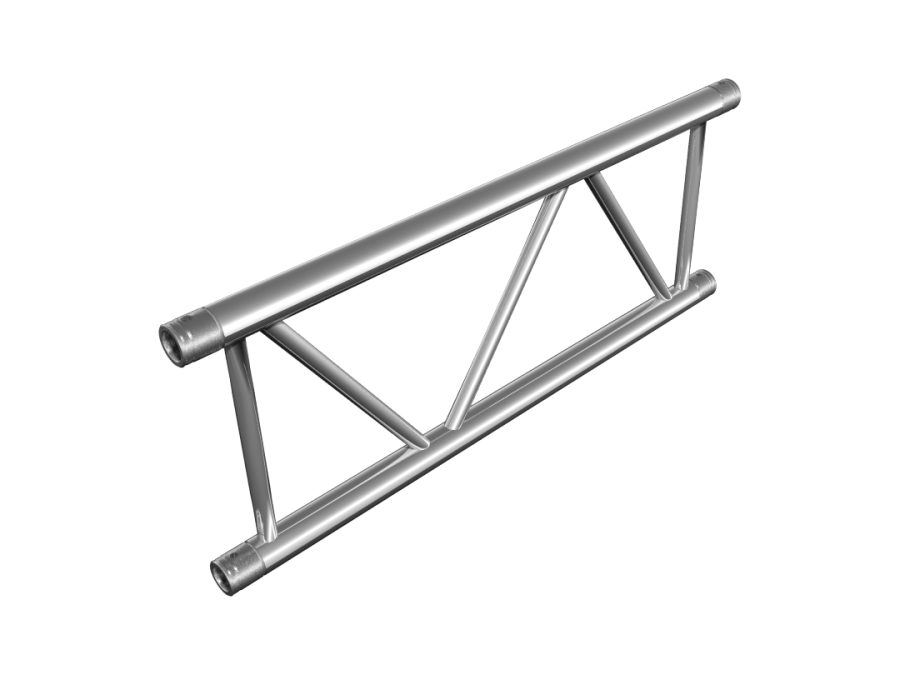

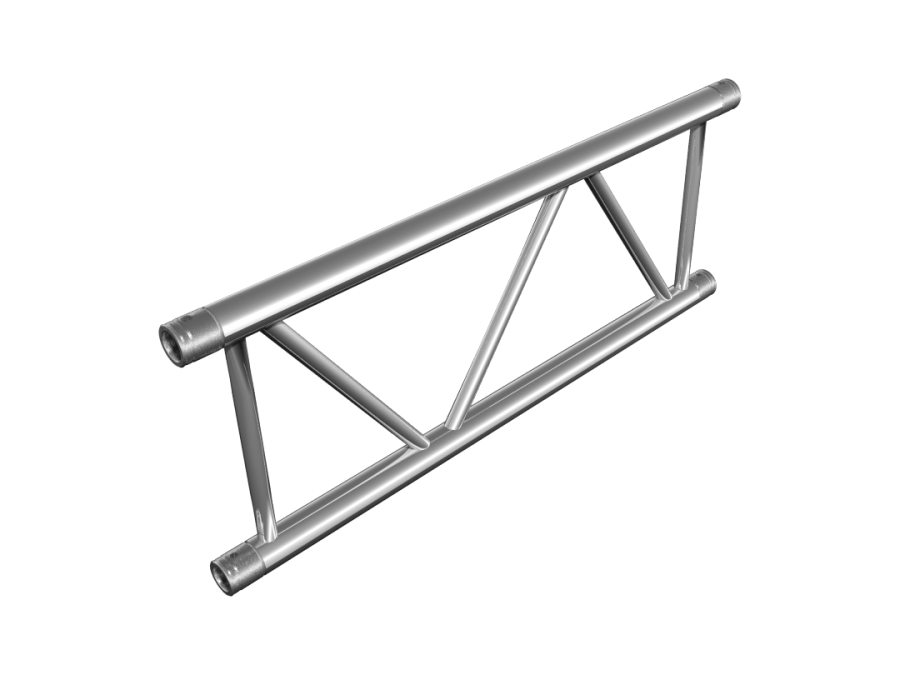

FT42

The FT42 series is a wider version of our ladder truss. With higher loading capacity, this truss can be used in wider spans or truss beams. Many mid size structures, such as tradeshow booths or displays, can be built with it. One of the main advantages of ladder truss lies in its stackability. It is the right choice for creating supportive beams in larger structures. FT42 is often referred to as ladder truss, bisystem, duo truss, I-Beam, double truss, etc.

Key features and benefits:

  • 400 mm (15.75 in) ladder truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 16 m / 52.49 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
