Products / FT Truss / FTR4030

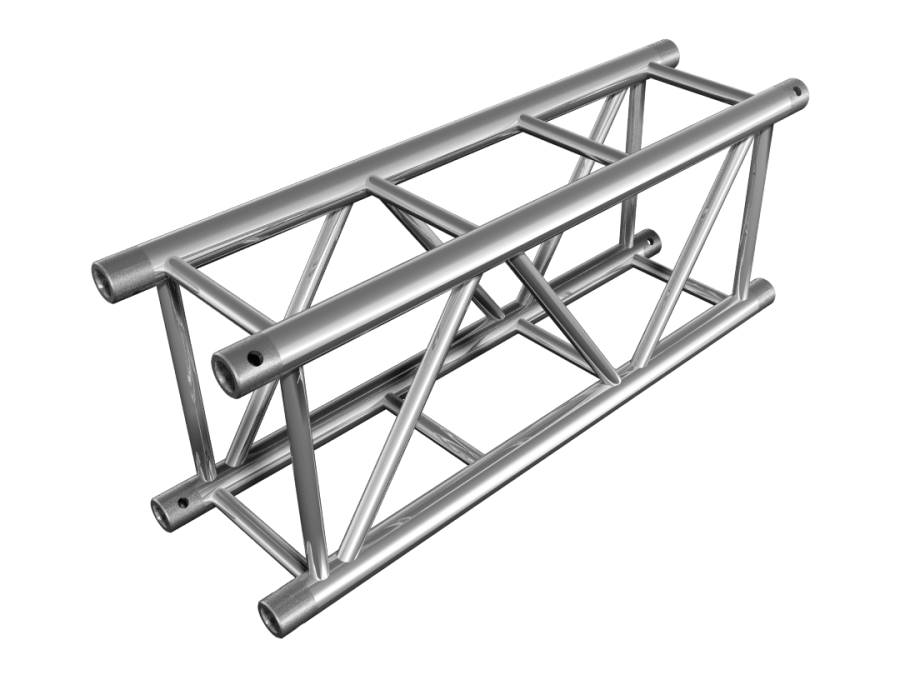

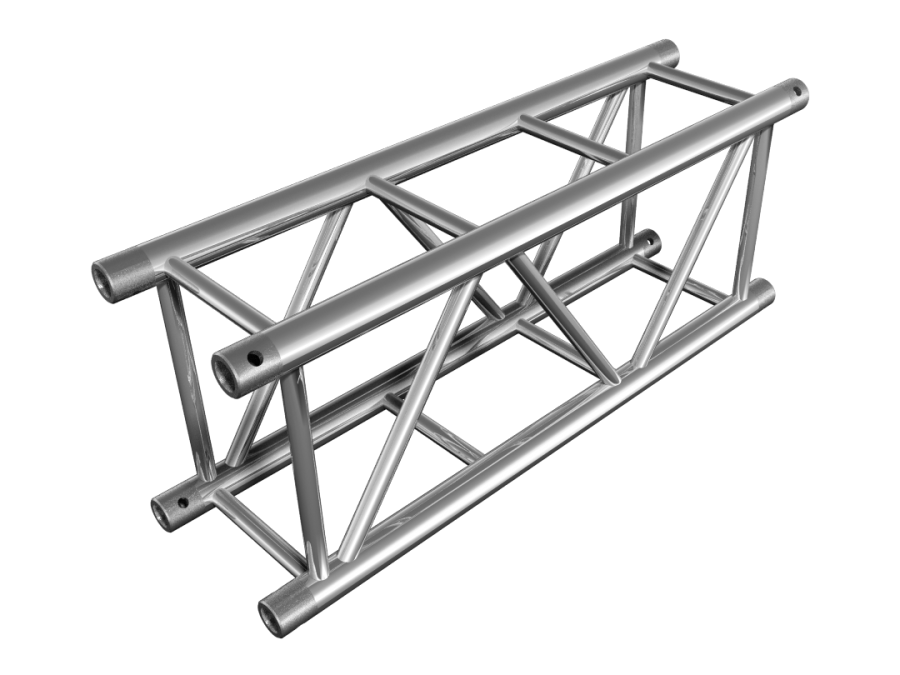

FTR4030

The FTR4030 truss line is the smallest trussing from our rectangular truss protfolio. However, it is still considered to be great for large spans, grids and support beams thanks to its unique design and consequently high loading charts which are regularly tested by TÜV SÜD. Its relatively small dimensions compared to the loading capacity make these trusses a great choice for any structure with high loading demands and spacial restrictions at the same time.

Key features and benefits:

  • Rectangular truss 290 x 400 mm (11.42 in x 15.75 in)
  • Certified 50 x 3 mm (2 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 13.12 ft
  • Span loading certified up to 18 m / 59.06 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Snap Clamps compatible (8102-8105)
  • Stack Clamps for easy stacking 8106, 8107
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 3 mm (2 in x 0.12 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
TÜV Süd TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
