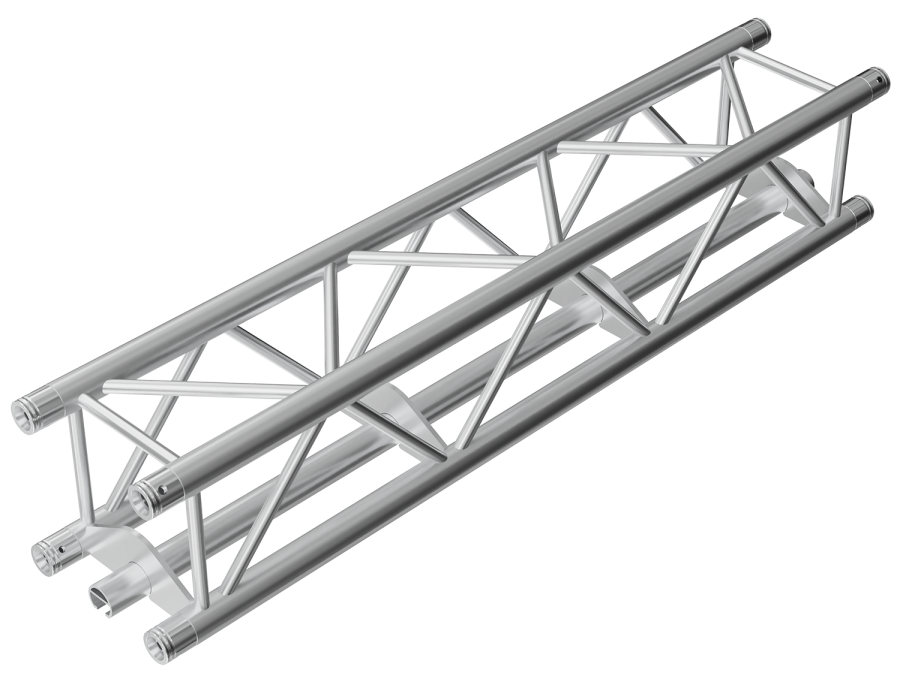

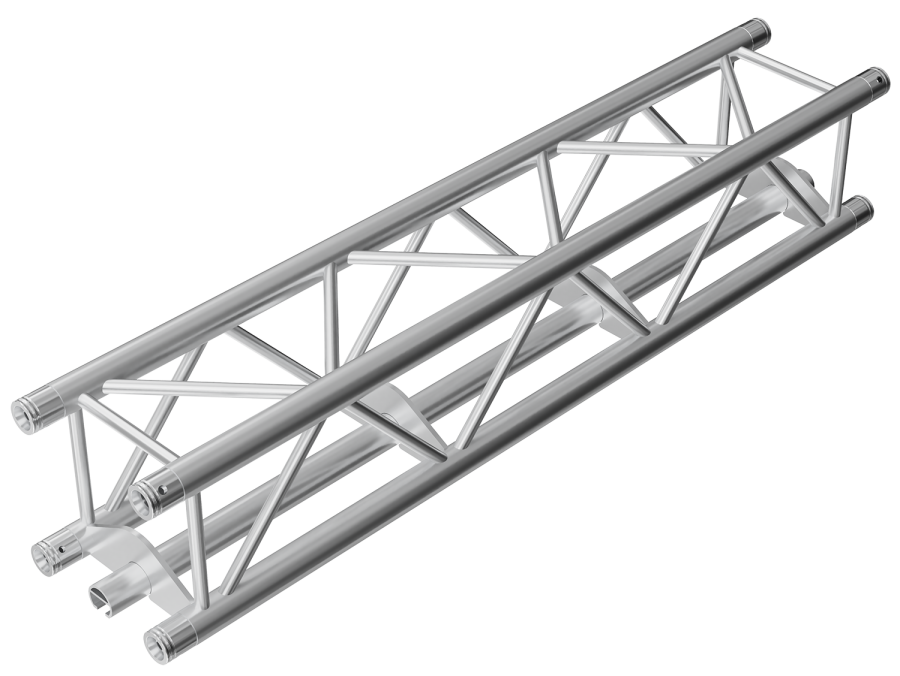

The design of TC35 truss provides several different options for placing equipment on your structures. Measuring 290 x 290 mm (12 x 12 in), it features 4 main heavy-duty tubes and a series braces designed to handle high loading demands. A fifth heavy-duty C-profile tube provides two possibilities for hanging equipment. The first option is to use standard clamps or half couplers on the tubes. The second option is to use a rigging eye that can be safely mounted anywhere along the entire length of the C-profile tube for unbeatable versatility when hanging LED screens. Integration and support of the central C-profile tube is carried out with 8 mm (0.32 in) plates welded into the truss.

Key features and benefits:

• 290 mm (11.42 in) square truss
• Quicklock connection system for quick and easy assembly
• Connection kit included
• Certified 50 mm x 4 mm (2 in x 0.16 in) tubes
• 8 mm (0.32 in) aluminium plates
• Available in various lengths up to 3 m (9.84 ft)
• Certified spans up to 20 m (65.62 ft)
• Interior & exterior applications
• Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
• Claw clamp 50 for in pipe welding on request
• Snap clamp compatible (8102-8105)
• Stack clamp for easy stacking (8106-8107)
• Powder coat colour finish available on request
