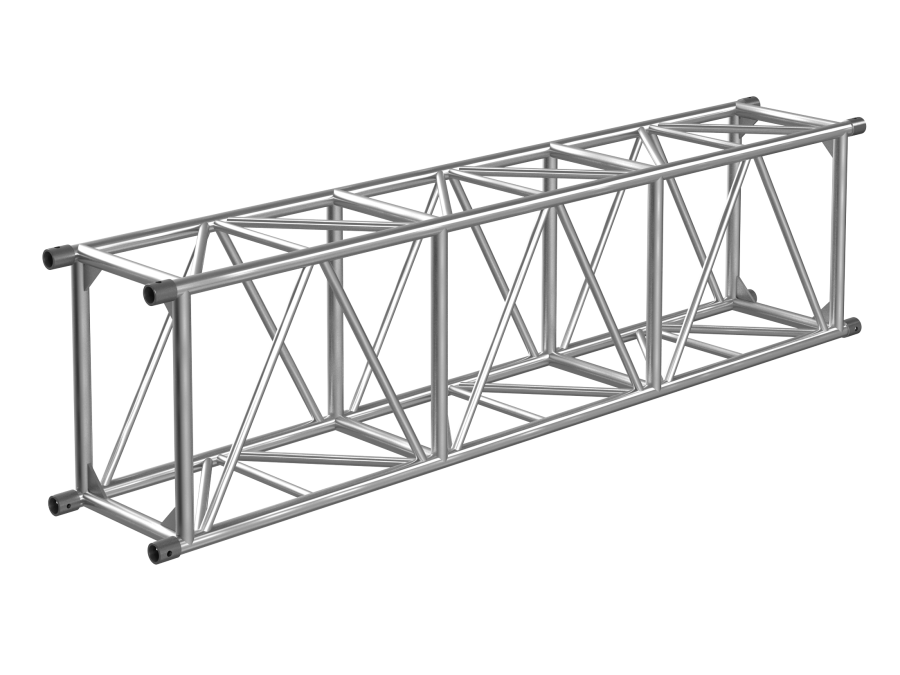

TT74

The TT74 truss comes handy in large setups, roof systems, truss grids and truss beams where high loads need to be carried on long spans. Make sure to follow any safety regulation for specific location. Quick lock connection for fast and easy assembly of the trusses.

Key features and benefits:

  • Rectangular truss 520 x 760 mm
  • 20.47 in x 29.92 in
  • Certified 50 x 4 mm (2 in x 0.16 in) tube
  • Available in various lengths up to 5 m / 13.12 ft
  • Span loading certified up to 20 m / 65.62 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 4 mm (2 in x 0.16 in)

BRACES

30 x 3 mm (1.2 in x 0.12 in)

ALLOY

EN AW-6082 T6
TÜV Süd TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
