TS36R

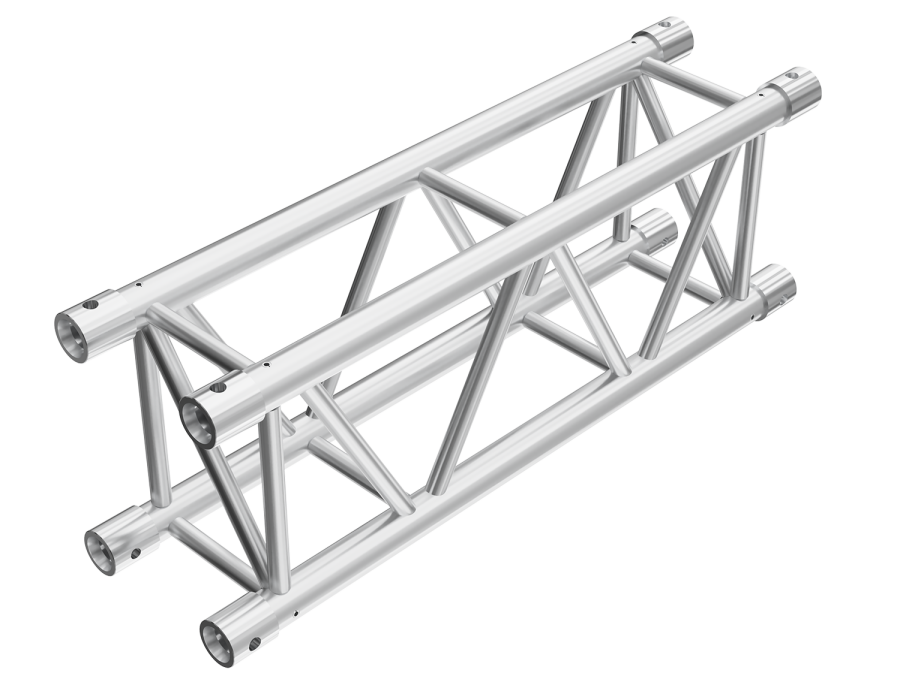

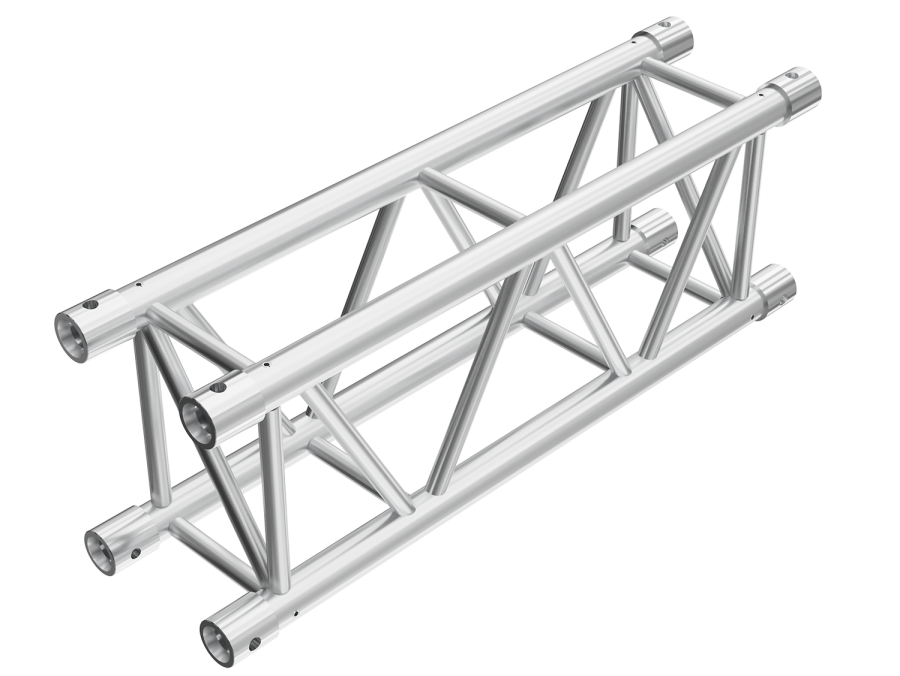

The TS36R is a compact yet robust truss with a sleek rectangular shape, offering the smallest dimensions in our rectangular range. Despite its size, it boasts an impressive loading capacity of up to 20 meters, making it a reliable choice for various applications. Ideal for projects that demand both efficiency and strength, the TS36R combines durability with a space-saving design.
Key features and benefits:
- Rectangular truss 267 x 359 mm (10.15 x 14.13 in)
- Certified 50 x 4 mm (1.97 x 0.16 in) tube
- Available in various lengths up to 3 m / 9.84 ft
- Span loading certified up to 20 m / 65.62 ft
- Interior & exterior applications
- Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
- Snap Clamps compatible (8102-8105)
- Stack Clamps for easy stacking 8106, 8107
- Quicklock connection system for fast assembly
- Powder coat color finish available on request
Specifications
|
TUBES |
50 x 4 mm (1.97 x 0.16 in) |
|
BRACES |
25 x 3 mm (0.98 x 0.12 in) |
|
ALLOY |
EN AW-6082 T6 |
