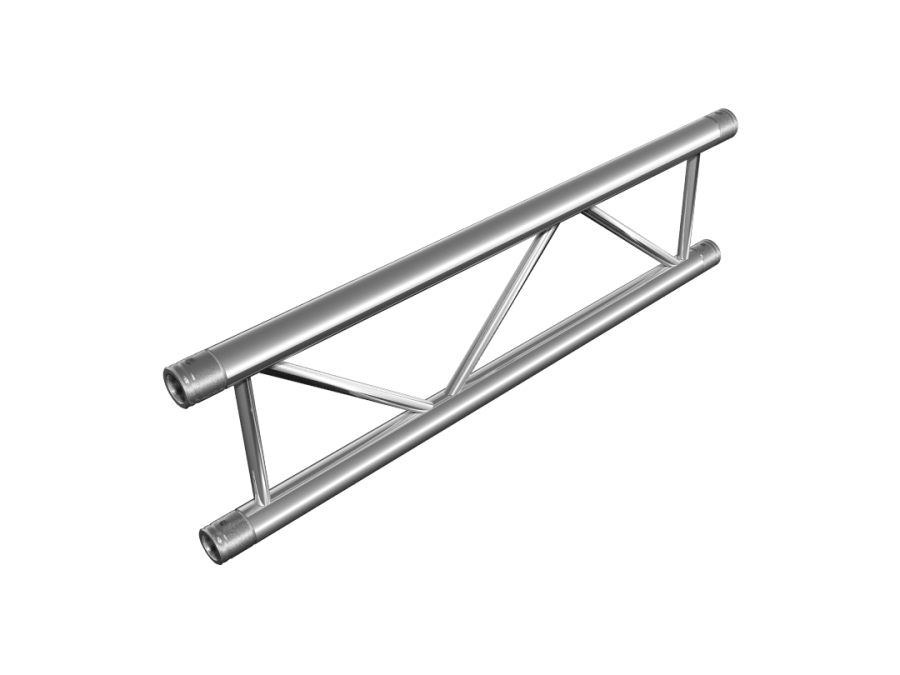

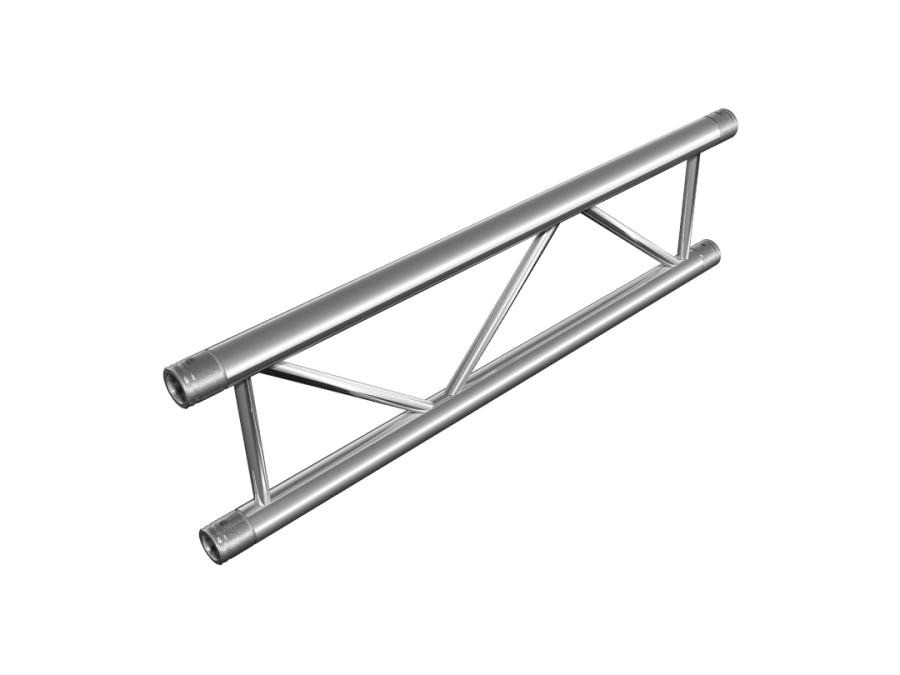

FT32

The FT32 truss line is a best seller. Often used as an equipment carrying subbeam in larger grids that move up and down. Many small to mid size structures can be built with FT32 truss. One of the main advantages of the truss lies in its stackability. FT32 is often referred to as ladder truss, bisystem, duo truss,I-Beam, or double truss, etc.

Key features and benefits:

  • 290 mm (11.42 in) ladder truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
