Products / FT Truss / FT22

FT22

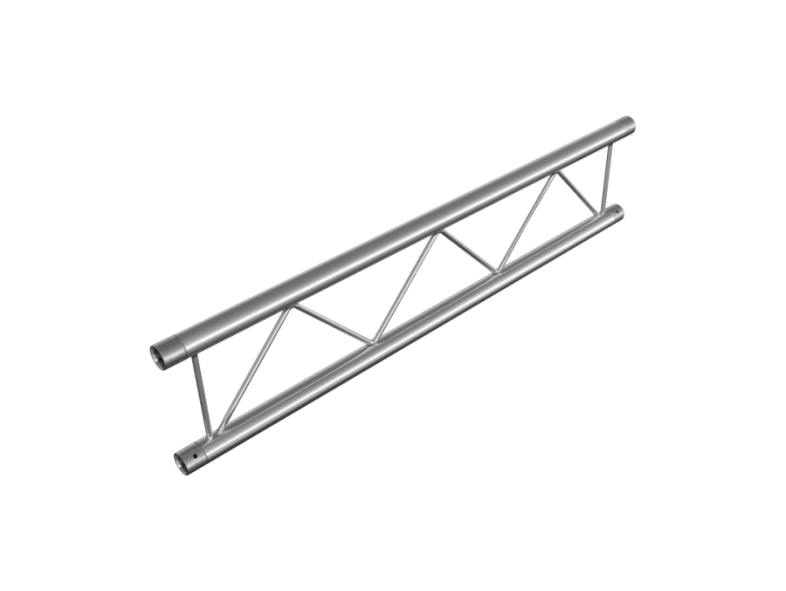

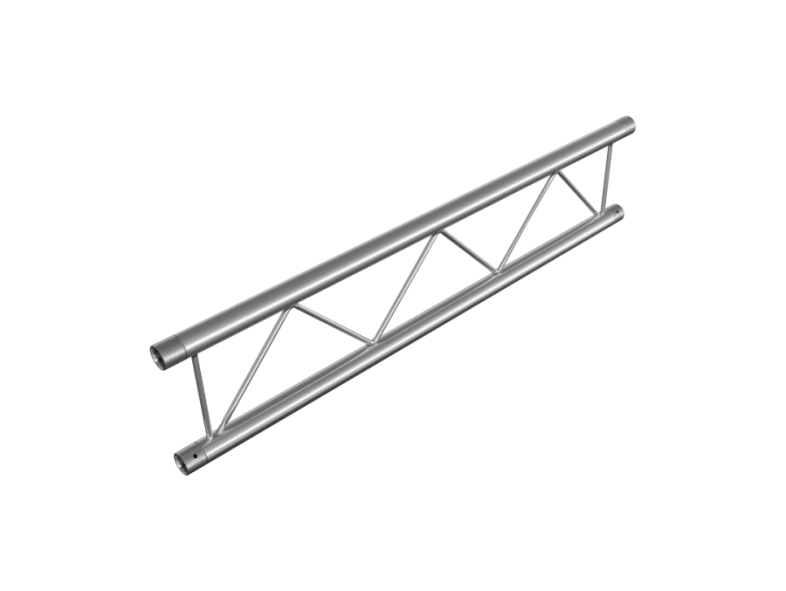

The FT22 is a smaller double truss certified by TÜV for light-weight applications - tradeshow booths, DJ booths, stands, frames, etc. FT22 is often referred to as ladder truss, bisystem, duo truss, I-Beam, double truss, etc.

Key features and benefits:

  • 220 mm (8.66 in) ladder truss
  • Certified 35 x 2 mm (1.4 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 10 m / 32.81 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8005, 8006, 8024, 8025, 8027, 8028, 8029 clamps
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

35 mm x 2 mm (1.4 in x 0.08 in)

BRACES

8 mm (0.3 in)

ALLOY

EN AW-6060 T66
TÜV Nord CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
