Products / FT Truss / HT33

HT33

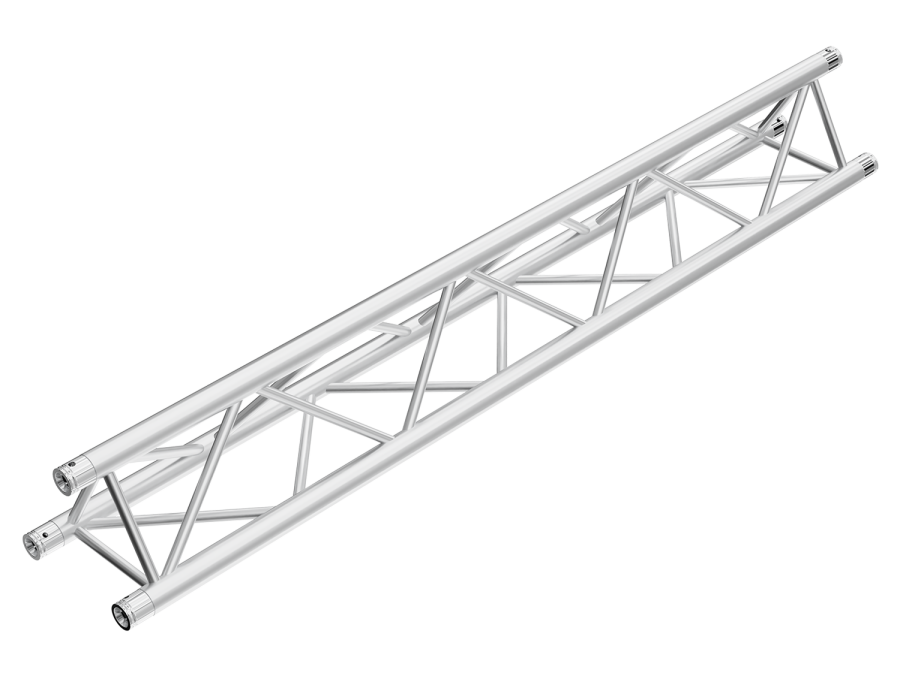

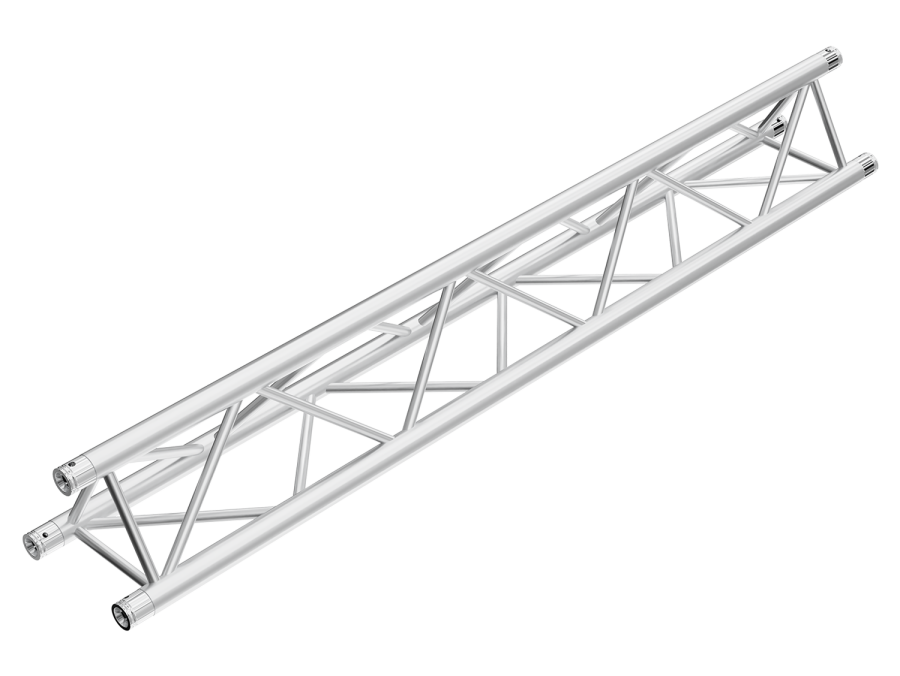

HT33 is our heavy duty version of 290 mm (12 in) triangle truss. Certified by TÜV SÜD. A higher loading capacity and relatively small dimensions are among its advantages. Its decorative and supportive characteristics make this truss line the right choice for a range of installations.

Key features and benefits:

  • 290 mm (11.42 in) triangle truss
  • Certified 50 x 3 mm (2 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 3 mm (2 in x 0.12 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
