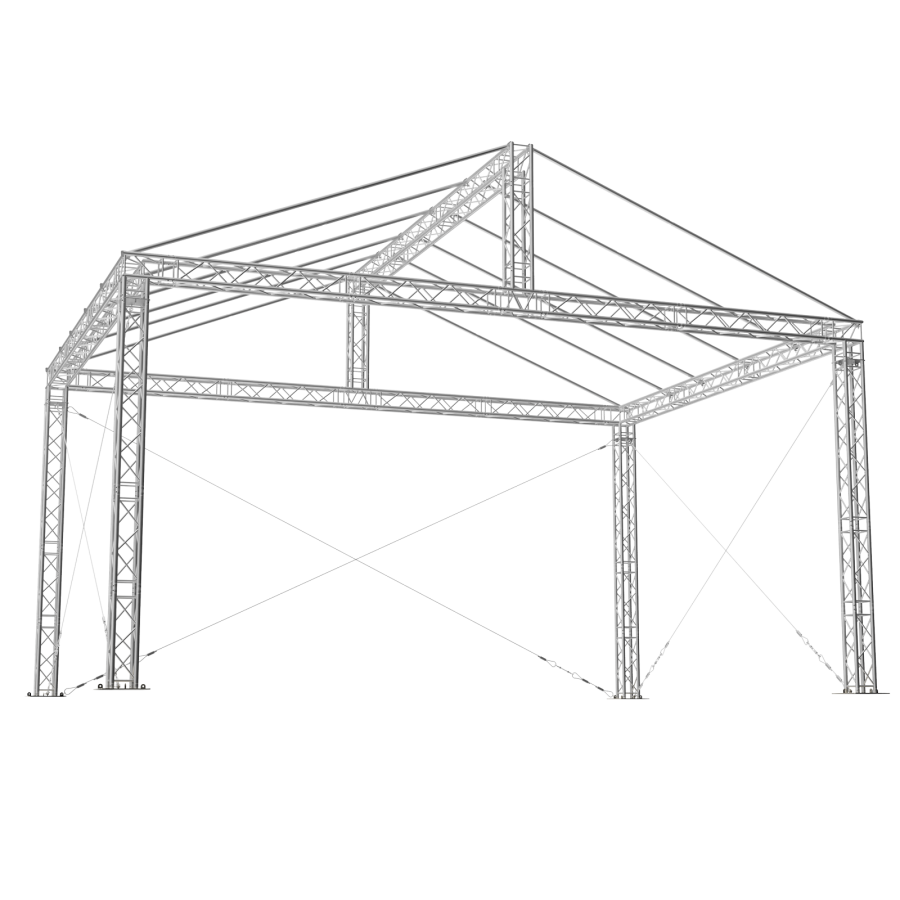

ROOF RST 8x6m

Using standard FT34 truss line to built safe and secure roof system is a big advantage for many smaller scale events. This roof can accommodate stage size of 8 m x 6 m (26 ft x 20 ft). Its clearance is 4.2 m (13.78 ft). The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.



The top canopy support system is created by six 50 mm x 2 mm single tubes per side of the roof perfectly spaced 1.27 m (4.17 ft) apart form each other. These are securely hooked to the main support grid of the roof by side slim clamps 8037.



The horizontal beams are able to carry 55 kg/m (37 lb/ft), which makes the max. loading capacity of the roof 1,903 kg (4,195 lb). The operational wind limit for using the roof system with the side canopies on all three sides is 15 m/s (33 mph).

Specifications

MAX. DIMENSIONS

9 m x 6.5 m (29.53 ft x 21.33 ft)

MAX. STAGE SIZE

8 m x 6 m (26.25 ft x 19.69 ft)

MAX. CLEARANCE

4.22 m (13.85 ft)

MAX. HEIGHT

6.22 m (20.41 ft)

MAX. LOAD BEARING CAPACITY

1,903 kg (4,195 lb)

TOTAL WEIGHT OF CONSTRUCTION

652 kg (1,437 lb)
TAF Static Approved CEPowder coating available
