ROOF-1

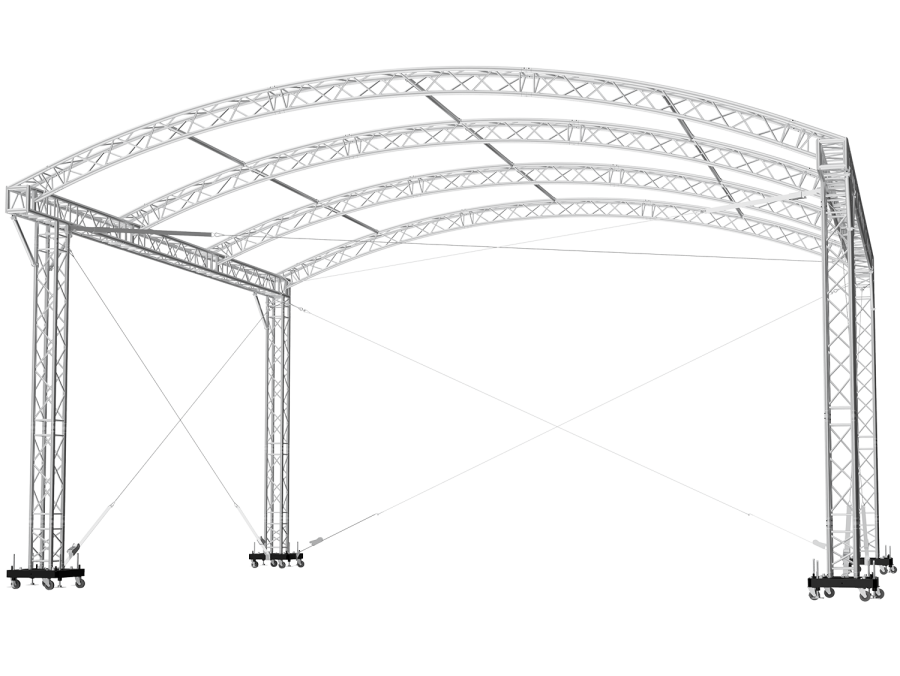

Roof 1 is an arched roof structure designed to cover stage 8 m x 6 m (26 ft x 20 ft). Its attractive look is great for small to middle size events such as concerts, fashion and entertainment shows, theatrical performances and many others. Roof 1 is a great choice as its dynamic look lends yet another stylish point to your show. The arched Roof 1 can be installed both with the top cover from PVC only or including the standard side mesh canopies as well.



Top part of the Roof 1 consists of four arches each made of 3 circle segments that are attached to the side beams through specially designed fixed corners. From the structural point of view the arches, in general, represent the strongest solution of support. That is why circle segments from HT33 truss series can be used in order to create the top arches, even though the span is relatively long. These arches are interconnected by nine over 2 m long pipes with universal clamps that also create necessary support for the top canopy.



The arches from HT33 truss are able to carry load of max. 40 kg/m (27 lbs/ft) plus the side beams are certified for load bearing capacity of max. 60 kg/m (40 lbs/ft), which sums up to the max. loading capacity of the roof being 1400 kg (3,087 lbs). The operational wind limit for using the roof system with the side canopies on all three sides is 20 m/s (45 mph).

Specifications

MAX. DIMENSION

8.58 m x 7.51 m (28.15 ft x 24.61 ft)

MAX. STAGE SIZE

8 m x 6 m (26 ft x 23 ft)

MAX. CLEARANCE

4.9 m (16 ft)

MAX. HEIGHT

5.2 m (17 ft)

MAX. LOAD BEARING CAPACITY

1400 kg (3,087 lbs)

TOTAL WEIGHT OF CONSTRUCTION

570 kg (1,257 lbs)
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
