ROOF-2 8x6m

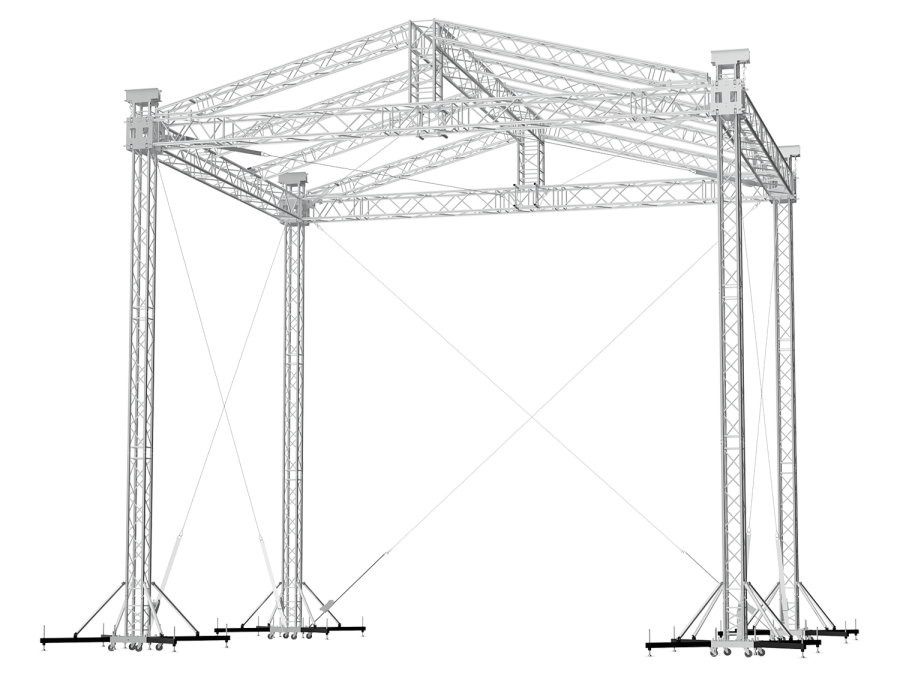

Gable roof design has become the standard in aluminum truss temporary roof structures throughout the world. Roof 2 system comes in three different size variations covering small to big size events. It is a very popular roof structure thanks to its variability, strength and decent size measures. The main grid is assembled on the ground and then lifted up thanks to the employment of Tower 1 elevation systems.



The main rectangular grid of Roof 2 is made of FT44 trusses while the front and rear rafters come from FT34 truss line and the inside rafters are made by FT33 truss segments. The gable of the roof is created by the FT34 rafters and specifically designed corners for strong and secure roof structure attachment. The inside FT33 rafters are connected to the main grid and top beam through clamps. The rafters are spaced 2 m apart from each other in order to create a sufficient support for the top canopy placement eliminating water pockets.



Roof 2 for stage size 8 m x 6 m (26 ft x 20 ft) maybe smaller in size but its loading characteristics are quite high. Front and rear main beams of the grid can carry load up to 150 kg/m (101 lbs/ft) and at the same tim the side truss beams can handle imposed load of max. 100 kg/m (67 lbs/ft). In total the max. loading capacity of the roof comes up  to 3500 kg (7,716 lb). he operational wind limit for using the roof system with the side canopies on all three sides is 20 m/s (45 mph).





Specifications

MAX. DIMENSION

10.5 x 8.5 m (34.45 ft x 27.89 ft)

MAX. STAGE SIZE

8 m x 6 m (26.25 ft x 19.69 ft)

MAX. CLEARANCE

7 m (22.97 ft)

MAX. HEIGHT

8.57 m (28.11 ft)

MAX. LOAD BEARING CAPACITY

3500 kg (7,716 lbs)

TOTAL WEIGHT OF CONSTRUCTION

2000 kg (4,409 lbs)
TAF Static Approved CEPowder coating available
