GABLE ROOF 8x6m

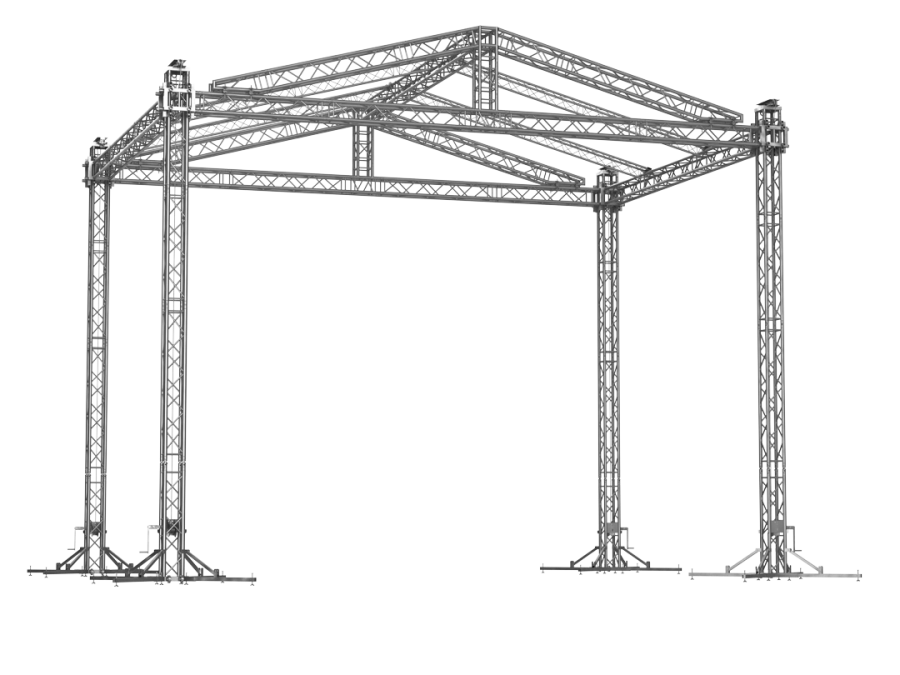

Combination of standard FT34 truss with Tower 05 systems turns out to be very effective and versatile option for temporary roof structure installation. Tower 05 columns ensure the ability to elevate the main roof grid in a simple and easy manner. This roof can accommodate stage size of 8 x 6 m (26.3 ft x 19.7 ft). Its clearance is 6.1 m (20 ft). The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.



The top canopy support system is created by two rafters made of FT23 truss segments per side of the roof. These are securely hooked to the central top truss beam by 8001 clamps and to the main grid by specifically designed lower FT23 attachment.



The horizontal beams are able to carry 50 kg/m (33 lb/ft), which sums up to the max. loading capacity of the roof being 2000 kg (4409 lb). The operational wind limit for using the roof system with the side canopies on all three sides is 20 m/s (45 mph).

Specifications

MAX. DIMENSION

10.3 x 7.8 m (33.79 ft x 25.59 ft)

MAX. STAGE SIZE

8 x 6 m (26.25 ft x 19.69 ft)

MAX. CLEARANCE

6.1 m (20.01 ft)

MAX. HEIGHT

7.53 m (24.71 ft)

MAX. LOAD BEARING CAPACITY

2000 kg (4409 lb)

TOTAL WEIGHT OF CONSTRUCTION

600 kg (1323 lb)
TAF Static Approved CEPowder coating available
