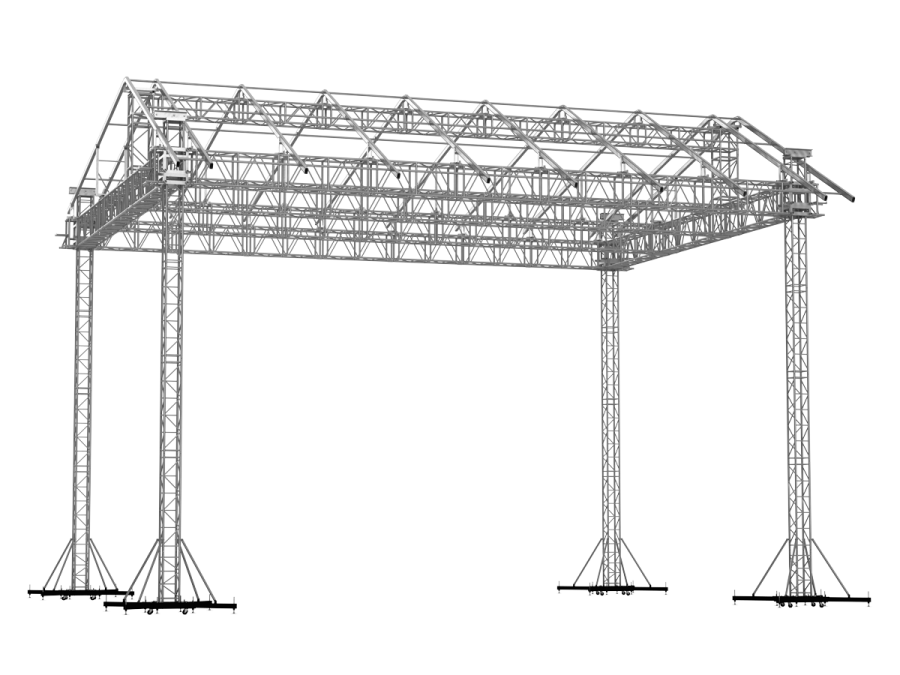

ROOF 14x10x9m KD

Roof systems incorporating keder profile on top of the truss grid base structure are very popular among professional installers, riggers and event companies as they are mostly used in large events covering the main stages of cultural and public events. The big advantage of keder roof lies in the possibility to cover big size stages and at the same time maintain high loading capacity. The keder profile roof top structures allow to use higher number of relatively small PVC top cover stripes to be used and handle the most of the weather conditions that may occur during the event.



The main rectangular grid of Keder Roof 14 m x 10 m x 9 m is made of TT74 truss and the main horizontal support for the keder profile rafters supporting the canopy stripes is from TT54 truss series.



TAF standard keder roof covers stage of 14 m x 10 m (46 ft x 33 ft) in size and the event equipment can be lifted up to the 9 m (29.5 ft) in height thanks to the employment of Tower 2 truss columns. Maximum loading capacity of the roof is 5000 kg (11,023 lbs). The operational wind limit for using the roof system with the side canopies on all three sides is 20 m/s (45 mph).



Specifications

MAX. DIMENSION

17 x 13.4 m (55.91 ft x 44.03 ft)

MAX. STAGE SIZE

14 x 10 m (45.93 ft x 32.81 ft)

MAX. CLEARANCE

9 m (29.53 ft)

MAX. HEIGHT

12 m (39.37 ft)

MAX. LOAD BEARING CAPACITY

5000 kg (11,023 lbs)

TOTAL WEIGHT OF CONSTRUCTION

4100 kg (9039 lbs)
TAF Static Approved CEPowder coating available
