ROOF RST 6x4m

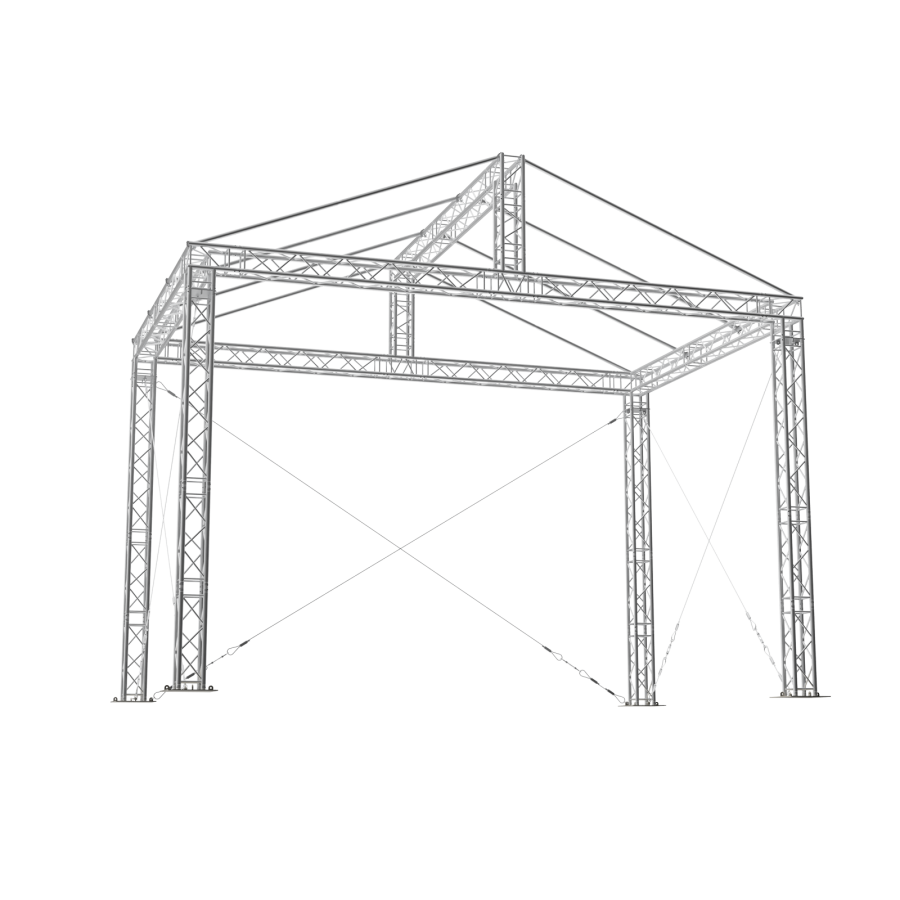

Standard truss roof system is very handy and easy to assemble type of gable roof that can be built up mostly from the standard FT34 trussing line segments. This roof can accommodate stage size of 6 m x 4 m (20 ft x 13 ft). Its clearance is 4.2 m (13.78 ft). The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.



The top canopy support system is created by four 50 mm x 2 mm single tubes per side of the roof perfectly spaced 1.45 m (4.76 ft) apart form each other. These are securely hooked to the main support grid of the roof by side slim clamps 8037.



The horizontal beams are able to carry 100 kg/m (67 lbs/ft), which makes the max. loading capacity of the roof 2460 kg (5,423 lbs). The operational wind limit for using the roof system with the side canopies on all three sides is 15 m/s (33 mph).

Specifications

MAX. DIMENSIONS

7 m x 4.5 m (23 ft x 14.8 ft)

MAX. STAGE SIZE

6 m x 4 m (19.69 ft x 13 ft)

MAX. CLEARANCE

4.22 m (13.85 ft)

MAX. HEIGHT

5.82 m (19.10 ft)

MAX. LOAD BEARING CAPACITY

2460 kg (5,423 lbs)

TOTAL WEIGHT OF CONSTRUCTION

518 kg (1142 lbs)
TAF Static Approved CEPowder coating available
