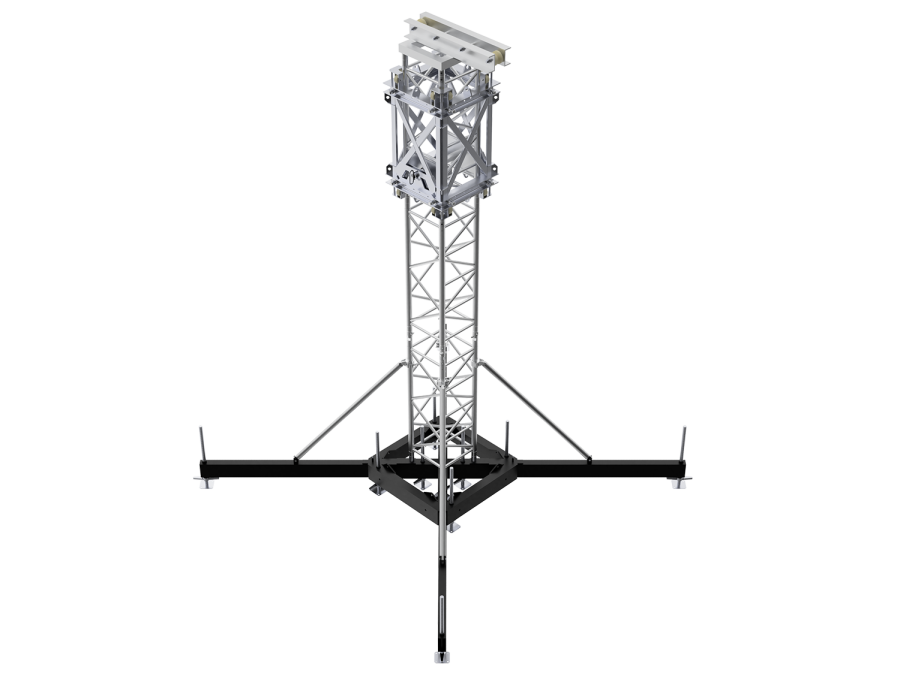

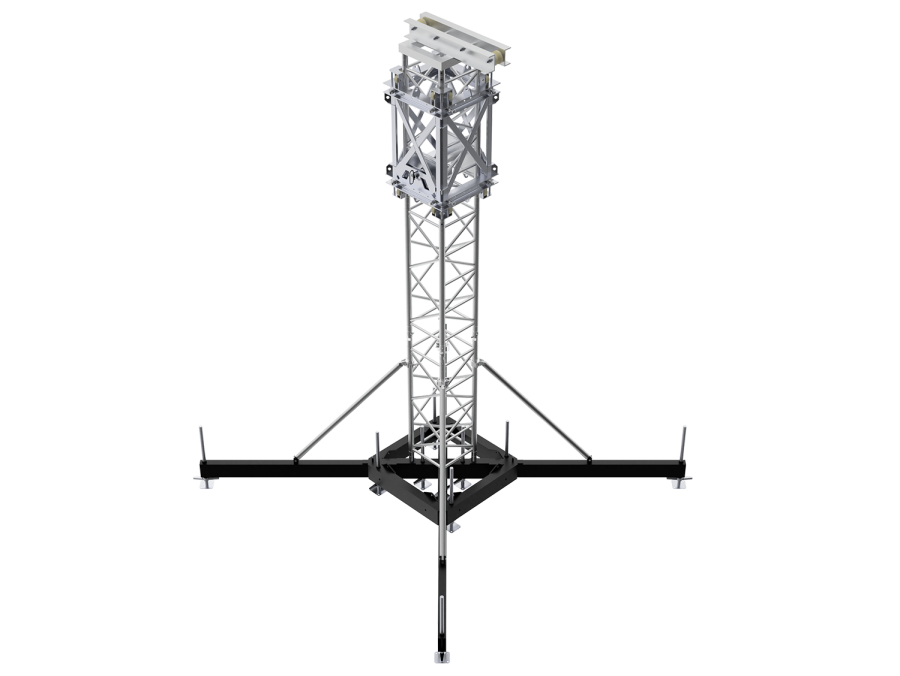

TAF Tower 3 is the tallest and highest-capacity tower system in the TAF range, designed for maximum stability and structural performance. The system allows installations up to 20 m (65.62 ft) in height and supports loads of up to 8000 kg (17,636.98 lbs), making it suitable for the most demanding applications where extreme load capacity and rigidity are essential.

The tower structure is built from heavy-duty truss sections with main tubes measuring 60 × 5 mm (2.36 × 0.20 in) and braces 30 × 3 mm (1.18 × 0.12 in). This robust construction ensures excellent strength, durability and long service life even under intensive professional use.

Tower 3 is equipped with a steel sleeve block, designed to provide smooth, safe, and reliable vertical movement of heavy loads along the tower. The steel sleeve block significantly increases load-handling precision and structural stability, making it ideal for applications requiring controlled lifting, positioning, and secure load support at height.

For maximum stability, Tower 3 is recommended to beTower 3 is recommended to be anchored to Layher structures for maximum stability, with the base solution depending on the specific configuration. The system is ideal for complex structural and event applications where maximum reliability and safety are required.

Key Features and Benefits

• Maximum lifting height: 20 m (65.62 ft)

• Maximum load capacity: 8000 kg (17,636.98 lbs)

• Steel sleeve block for safe and precise vertical load movement

• Heavy-duty tower system for extreme structural loads

• Designed for maximum stability in demanding conditions

• Suitable for large-scale event and structural applications

• Recommended anchoring to Layher systems

• Robust truss construction for long service life
