TFTB-L

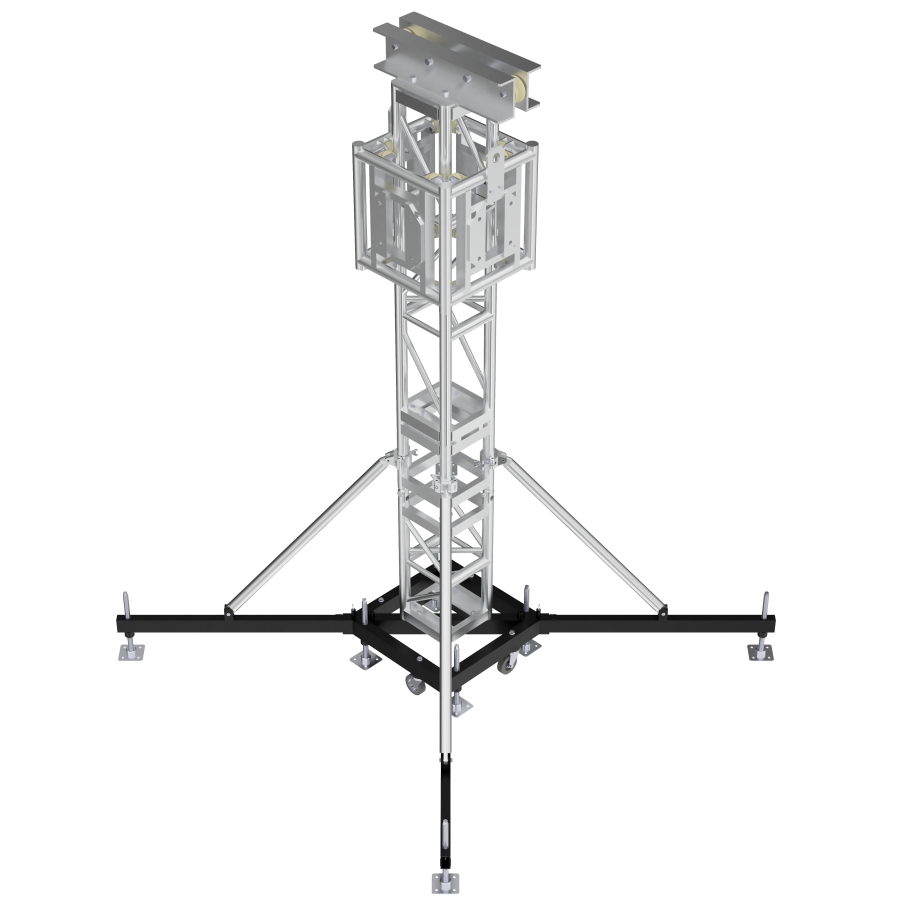

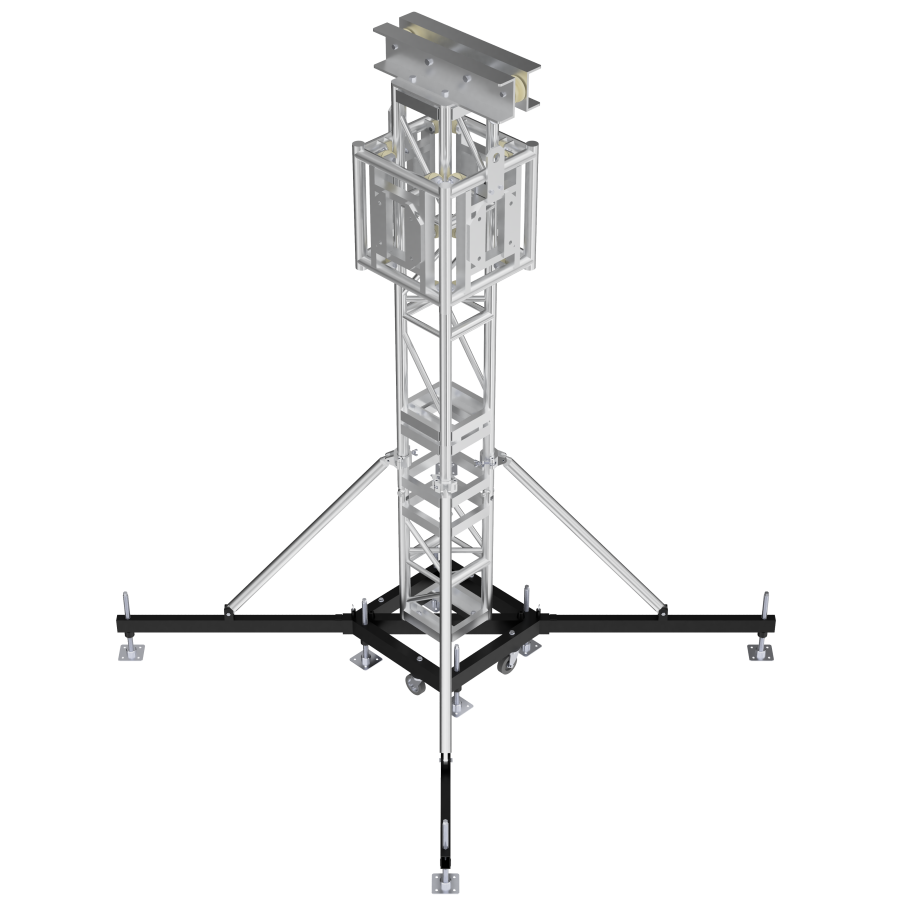

Tower with FTB-L bolted truss segments for medium-duty ground support. This tower truss system is designed for lifting a wide range of structures, such as roof systems, show grids and equipment. The system consists of straight TFTB-L bolted truss segments, steel base plate, long outriggers for supporting the vertical stability of the tower, welded aluminum sleeve block for attaching truss and an aluminum top section with pulleys. Can be installed as an independent unit or as a supportive column in structures, such as roofs, grids, LED screen frames, etc. Designed for use with a manual chain hoist or rigging motor with chain. The top section is ready to accommodate steel ropes, as well as steel chains.



Key features and benefits:



  • TFTB-L max. lifting height: 7.5 m (24.6 ft)
  • Max. loading capacity: 1000 kg (2,200 lb)
  • Part List: FTB-L truss, steel tower base, long outriggers, truss hinge, sleeve block, top section
  • Welded sleeve block ready for attachment of FTB-L and FTB-M truss series
  • Four-way connection through sleeve block possible
  • Interior & exterior applications
  • Connection kit supplied with straights and sleeve block
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Quicklock connection system with pins and safety clips as standard
Specifications

SELF WEIGHT

145 kg (320 lb)

HEIGHT

7.5 m (24.6 ft)

LOAD CAPACITY

1000 kg (2,205 lb)
Bolted Truss CEPowder coating available
