Products / Towers / TOWER 2

TOWER 2

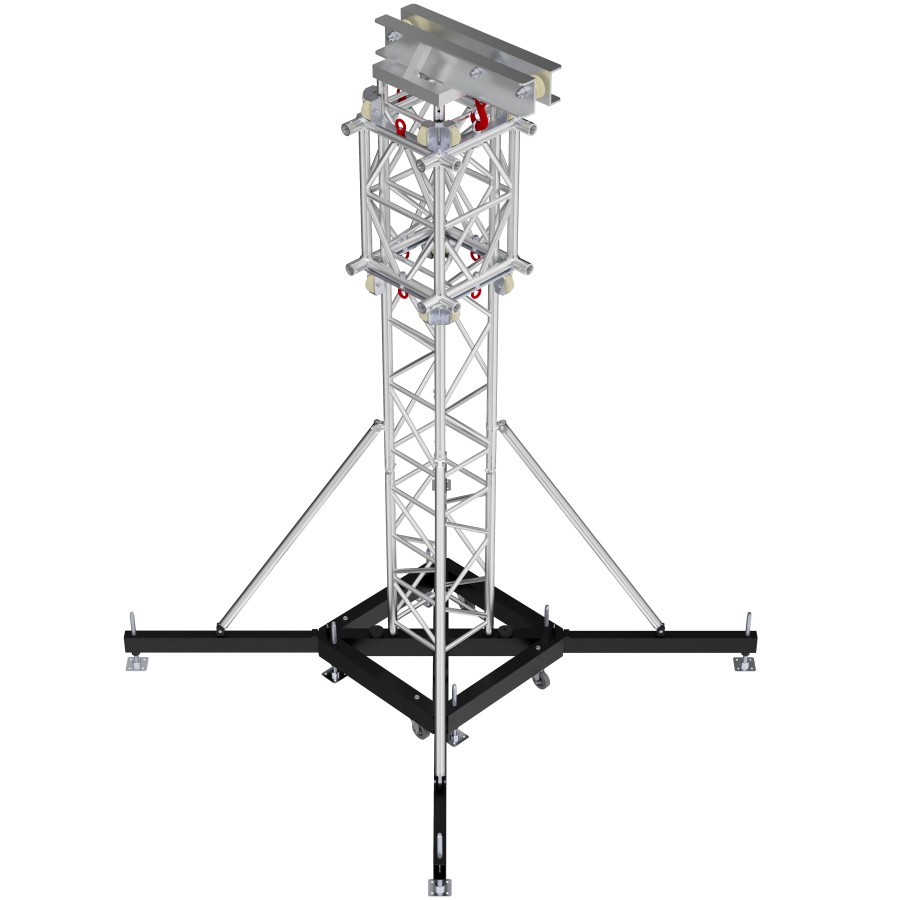

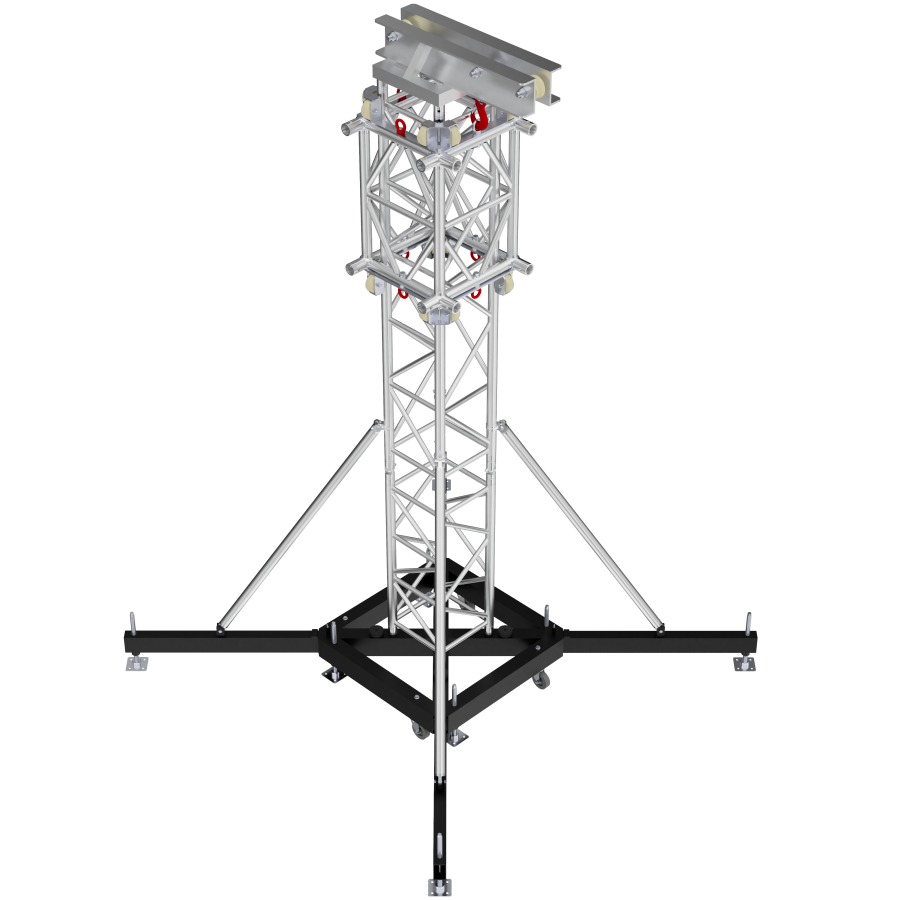

Tower 2 is ground support designed for lifting large scale structures, such as touring roof systems and big show grids. The system consists of straight TT44 truss segments, a steel base plate, long outriggers for supporting the vertical stability of the tower, an aluminum welded sleeve block for truss attachment and an aluminum top section with pulleys. (new paragraph here) It can be installed as both an independent unit or as a supportive column in large scale structures, such as roofs, grids, LED screen frames, etc. Tower 2 is designed for use with a manual chain hoist or rigging motor with chain. The top section is ready to accommodate steel rope, as well as a steel chain.



Key features and benefits:



  • Tower 2 max. lifting height: 12 m (39.4 ft)
  • Max. loading capacity: 2000 kg (4,409 lb)
  • Part List: TT44 truss, steel base plate, long outriggers, hinges, sleeve block, top section
  • Several welded sleeve block versions ready for attachement of FT/HT/TT44/TT54/TT74 truss series --- different variations available on request
  • Four-way connection through the sleeve block possible
  • Interior & exterior applications
  • Connection kit supplied with straights and sleeve block
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Quicklock connection system with pins and safety clips as standard
Specifications

SELF WEIGHT

315 kg (695 lb)

HEIGHT

12 m (39.4 ft)

LOAD CAPACITY

2000 kg (4,410 lb)
CEPowder coating available

Contact us today for more information or to receive a price quote.
