PA VERTICAL TOWER 1

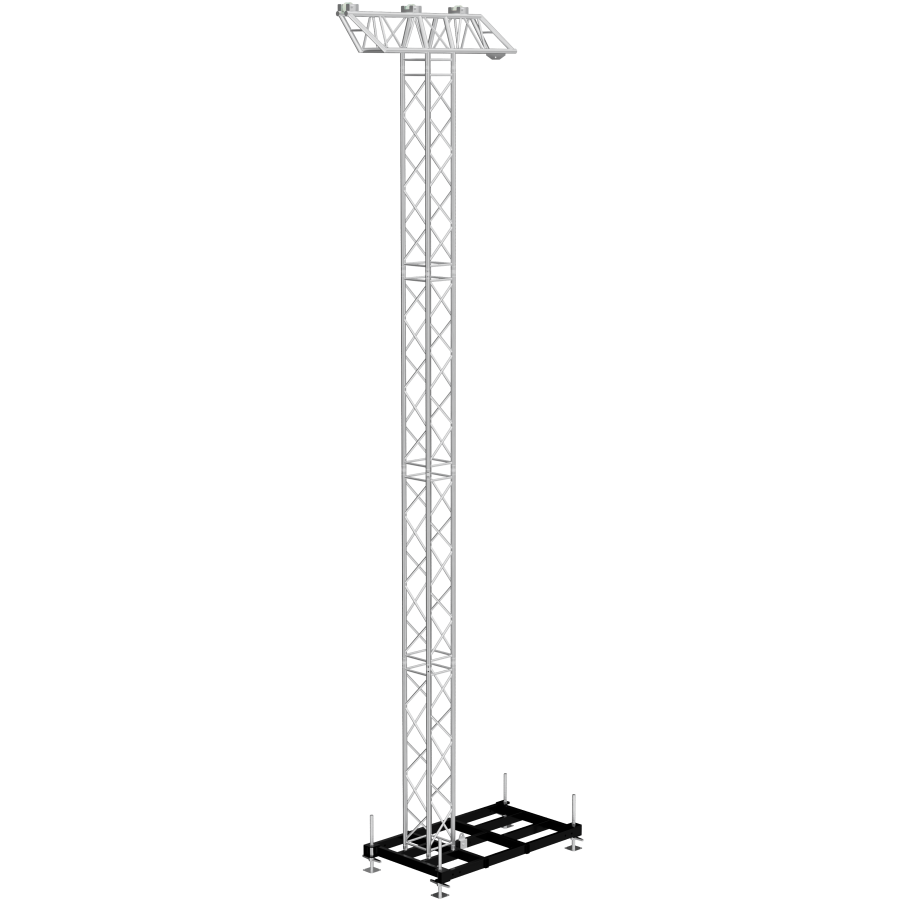

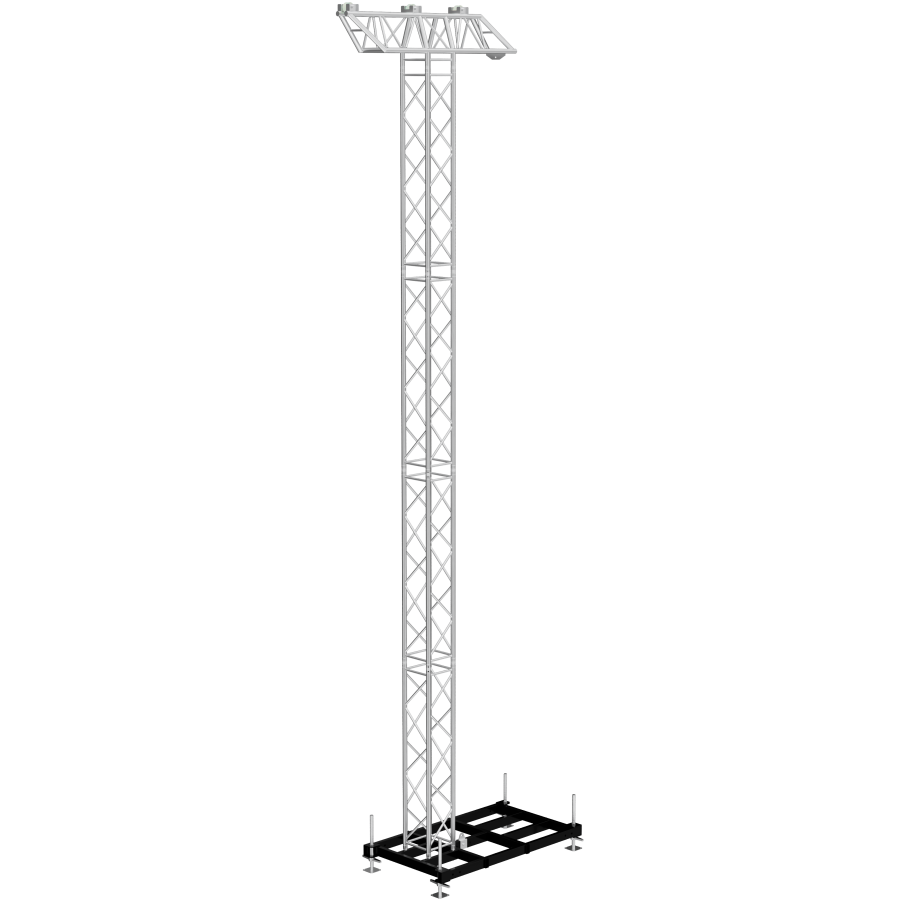

Introducing our new PA Vertical Tower 1 (PAV1). Its specially designed top section and use of heavy-duty HT44 or TT44 truss segments, with quicklock connection system, support up to 1000 kg (2,205 lb) loads at up to 8 m (26.2 ft) to ensure safe and secure hanging of speaker arrays at your large-scale events. Due to its versatile design, the PAV1 not only serves as an independent PA tower or part of your stage setup, but also as stable support for LED walls.



Stability is ensured by its robust base, which accepts ballast up to 2000 kg (4,410 lb) and features strategically placed attachment points for guy wires or manual/electric hoists. Uneven ground is easily tamed by its four independent spindles for safe and stable horizontal leveling. Outriggers are also available for additional stability when required.



Key features and benefits:



  • PAV 1 max. lifting height: 8 m (26.2 ft)
  • Max. loading capacitiy: 1000 kg (2,205 lb)
  • Part List: Optional HT44 or TT44 trusses,
  • Robust top section with hanging points
  • Up to 2000 kg (4,410 lb) ballast on compact base with 4 independent spindles for convenient leveling
  • Attachment points on base for guy wires and manual/electric hoists
  • Powder coat finish available on request
  • Outriggers for additional stability on request
Specifications

MAX. HEIGHT

8 m (26.2 ft)

MAX. LOAD

1000 kg (2,205 lb)

BALLAST

2000 kg (4,410 lb)
TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
