Products / Towers / PA TOWER 05

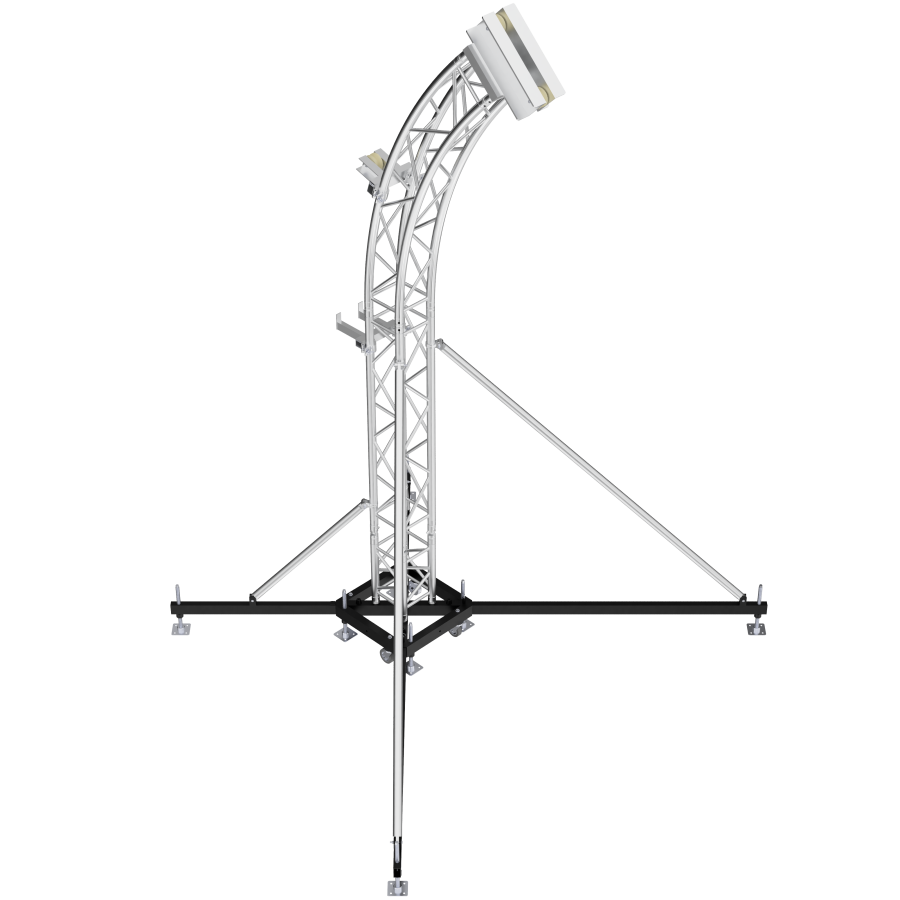

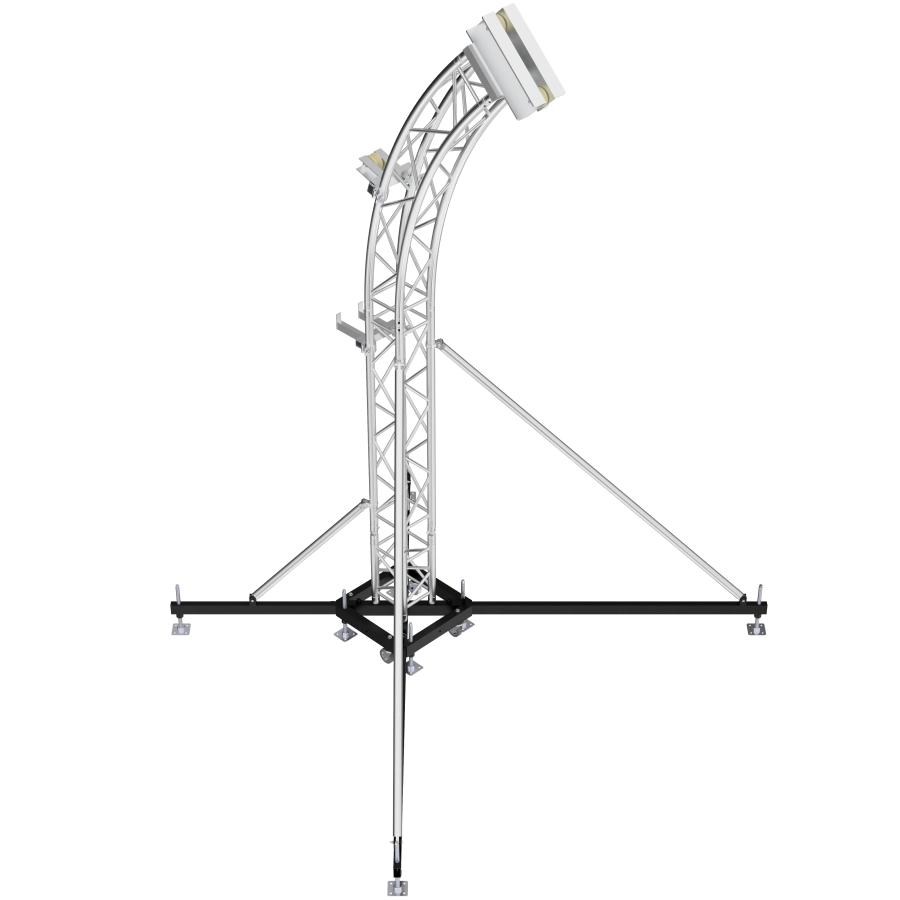

PA TOWER 05

Light-duty tower system for lifting speakers, which incorporates an angled truss element (due to static and design constraints) for optimized support. The sound tower truss structure comes with all components for quick and easy installation. The tower consists of FT34 truss segments, as well as a tower base, long outriggers to ensure vertical stability, hinges, top section, pulleys and a rigging motor mount. Line array tower installations have become one of the most important elements in sound engineering for larger events. Suitable for both indoor or outdoor use, as they can be used independent of the main stage. They have been designed to help create the perfect sound experience for audiences at all types of events.



Key features and benefits:



  • PA Tower 05 max. lifting height: 6 m (19.7 ft)
  • Max. loading capacity: 350 kg (771.6 lb)
  • Part List: FT34 truss, steel tower base, outriggers, hinges, pulleys, top section, motor mount
  • Interior & exterior applications
  • Connection kit supplied with all truss segments
  • Compatible with  8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Quicklock connection system with pins and safety clips as standard
Specifications

SELF WEIGHT

152 kg (335.1 lb)

HEIGHT

6.34 m (20.8 ft)

MAX. LIFTING HEIGHT

6 m (19.7 ft)

LOAD CAPACITY

350 kg (771.6 lb)
CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
