Products / Towers / PA TOWER 2

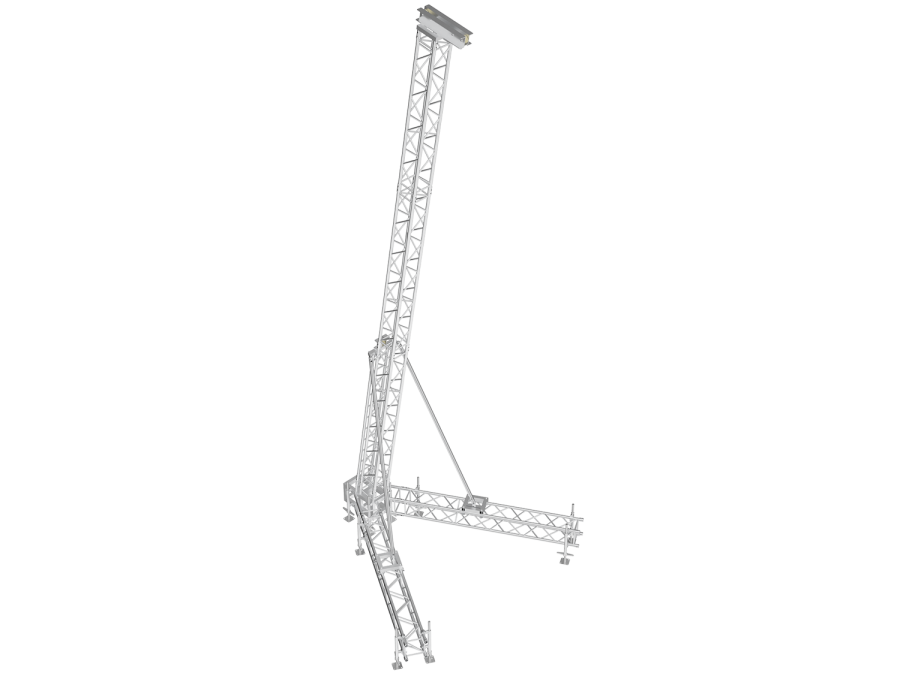

PA TOWER 2

Heavy-duty PA equipment aluminum truss rigging tower system. The sound tower structure comes with all components for quick and easy installation. Components include PA tower truss segments, as well as a 60° tower truss base corner, stabilizer tubes for vertical support of truss, hinges, top section, screw jacks and their attachments to the truss. Line array tower installations have become one of the most important elements in sound engineering for live events. Suitable for indoor and outdoor use. Can be placed independent from the main stage to create the perfect sound experience for audiences at all types of events.



Key features and benefits:



  • PA Tower 2 max. lifting height: 9.25 m (30.35 ft)
  • Max. loading capacity: 1000 kg (2,205 lbs)
  • Part List: Special PA tower truss, base corner, stabilizers, hinges, top section, screw jacks with attachments
  • Interior & exterior applications
  • Connection kit supplied with all truss segments
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Quicklock connection system with pins and safety clips as standard
Specifications

SELF WEIGHT

366 kg (807 lbs)

HEIGHT

9.55 m (31.30 ft)

MAX. LIFTING HEIGHT

9.25 m (30.35 ft)

LOAD CAPACITY

1000 kg (2,205 lbs)

BALLAST

500 kg (1,102 lbs)
CEPowder coating available

Contact us today for more information or to receive a price quote.
