Products / PT Truss / PTH44

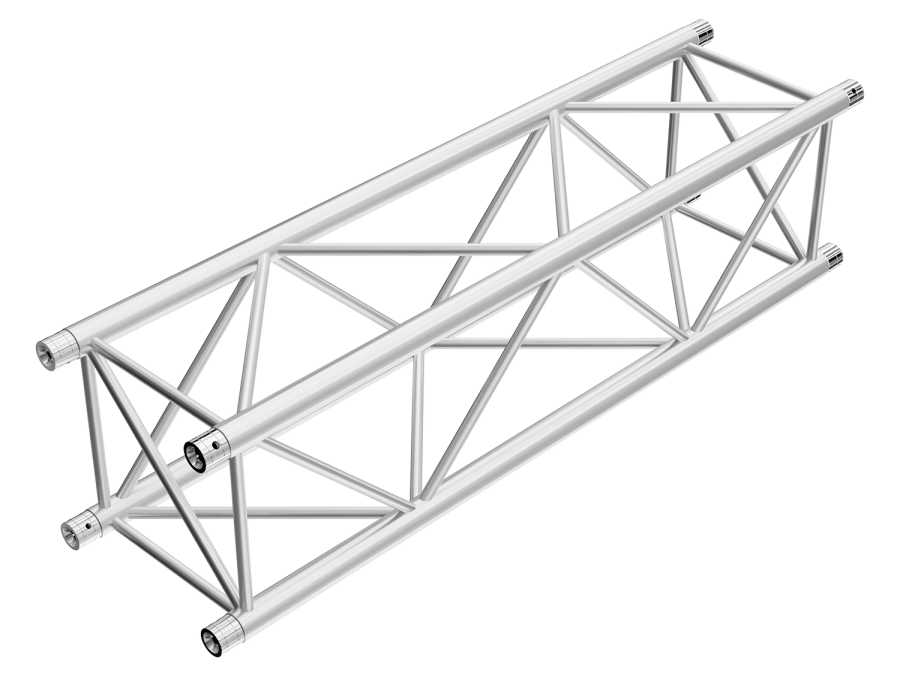

PTH44

With stronger pipes and perfect design this truss is usually used for installations with unsupported spans around 12 m. PTH44 features higher loading capacity that make it an ideal solution for keeping relatively small size of truss while having possibilities of standard loading capacities in terms of indoor or outdoor usage. It is compatible with H40V Prolyte truss brand. It is wildly popular with rental companies for creating supporting grids underneath roof structures or for hanging LED walls in the back of roof grids. Also, it is used very often for switching standard roof systems to more heavy duty characteristics that enable to cope with higher loads.

Key features and benefits:

  • Square truss 390 mm (15.35 in)
  • Certified 50 x 3 mm (2 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 13.12 ft
  • Span loading certified up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Stack Clamps for easy stacking 8106, 8107
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
  • Prolyte compatible
Specifications

TUBES

48 x 3 mm (1.89 in x 0.12 in)

BRACES

20 x 2 mm (0.63 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd TAF Static Approved CE

Contact us today for more information or to receive a price quote.
