PT34

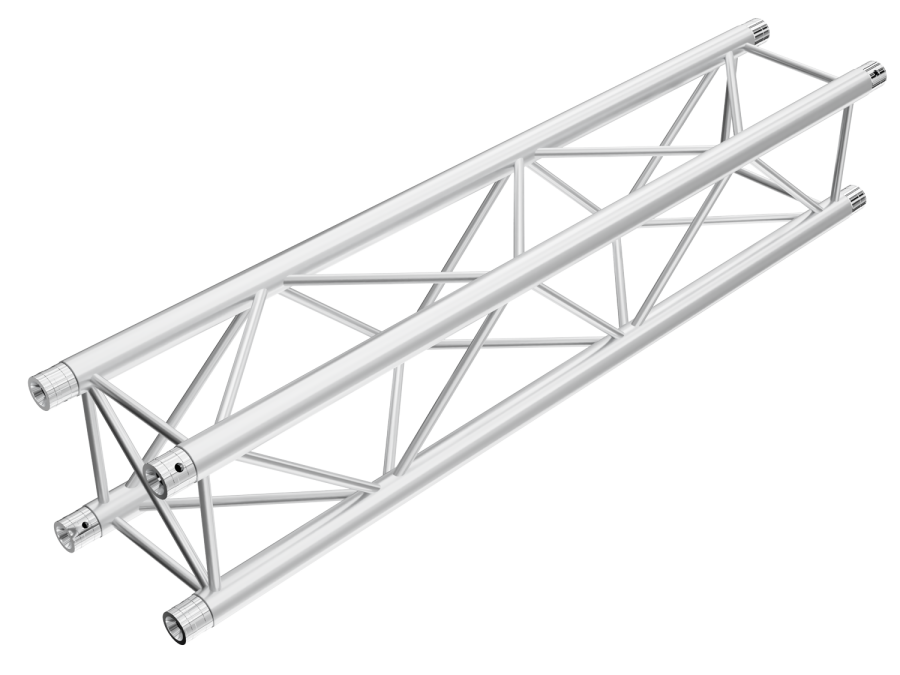

The PT34 stands for square shaped trussing with corner dimensions and connection fittings compatible to Prolyte trusses. Its loading charts are certified by TÜV SÜD and it can be used at numerous occassions for assembling medium size structures. Its both decorative and supportive characteristics make this truss line a great choice for any display booth or small roof system.

Key features and benefits:

  • Box truss 290 mm (11.42 in)
  • Certified 50 mm x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.4 ft
  • Span loading certified up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
  • Prolyte compatible
Specifications

TUBES

50 mm x 2 mm (2 in x 0.08 in)

BRACES

16 mm x 2 mm (0.63 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available

Contact us today for more information or to receive a price quote.
