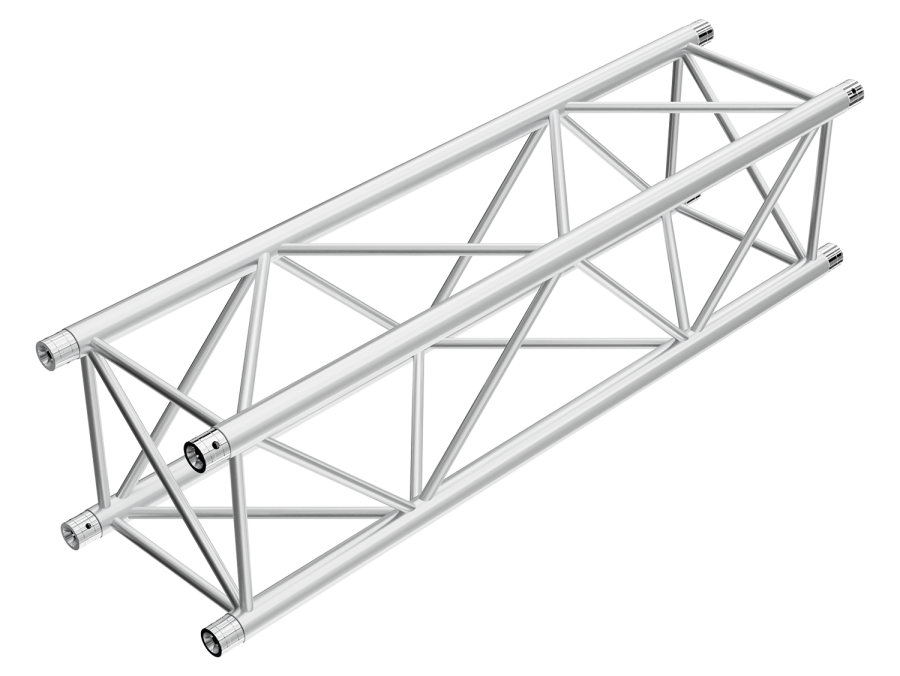

PT44

The PT44 truss line stands for larger and wider box trussing segments usually used for bigger structure assemblies. Its loading charts are certified by TÜV SÜD. It is designed for larger spans and although it is relatively light weight, it is ready to carry higher loads. This truss line is commonly used for creating rigging grids, medium sized roof systems, LED support frames or beams, larger rig frameworks or for creating different sizes of PA wings with roof systems.

Key features and benefits:

  • Square truss 390 mm (15.35 in)
  • Certified 50 mm x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.4 ft
  • Span loading certified up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Stack Clamps for easy stacking 8106, 8107
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
  • Prolyte compatible





Specifications

TUBES

50 mm x 2 mm (2 in x 0.08 in)

BRACES

20 mm x 2 mm (0.78 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
