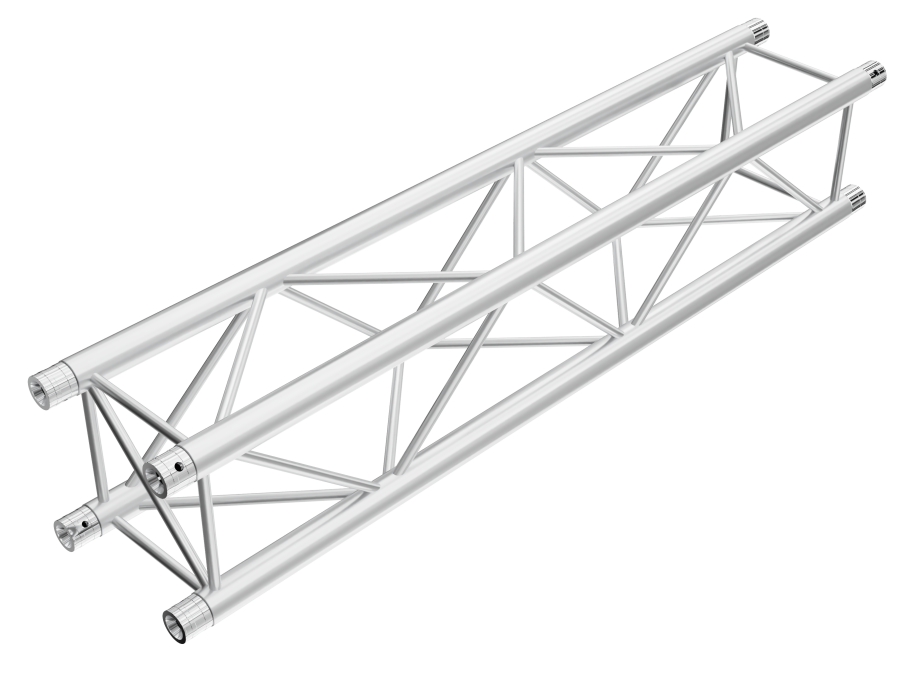

PTH34

The PTH34 stands for heavy duty square shaped trussing with corner dimensions and connection fittings compatible to Prolyte trusses. Its loading charts are certified by TÜV SÜD and it can be used at numerous occassions for assembling any size structures. Its supportive characteristics make this truss line a great choice for any rigger thanks to its relatively small design compared to higher loading rates.

Key features and benefits:

  • Box truss 288 mm (11.34 in)
  • Certified 48 x 3 mm (1.89 in x 0.12 in) tube
  • Available in various lengths up to 5 m / 13.12 ft
  • Span loading certified up to 12 m / 39.37 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Claw clamp 48 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Quicklock connection system for fast assembly
  • Powder coat color finish available on request
  • Prolyte compatible
Specifications

TUBES

48 x 3 mm (1.89 in x 0.12 in)

BRACES

16 x 2mm (0.63 in x 0.08 in)

ALLOY

EN AW-6082 T6
TÜV Süd CEPowder coating available
