ET33

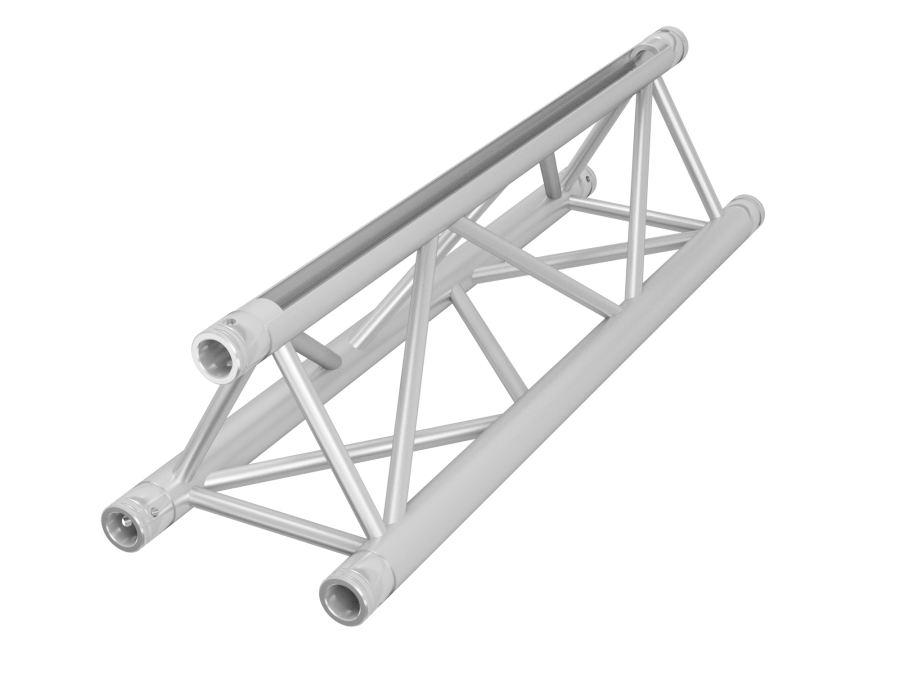

The ET33 triangle or trio truss system features three main chords, with one chord featuring a lighting track profile for easy fitting of a busbar. A conical connector on both ends of the segment ensures compatibility and easy assembly with all of our ET and FT quicklock truss products. Lights simply slide into the bar when equipped with a busbar and busbar connector. No additional cables are required.



Key features and benefits:



  • 290 mm (11.42 in) triangle truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 13.12 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Quicklock connection system for fast assembly
  • Powder coat finish on request



Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
CEPowder coating available
