Products / ET Truss / ET31

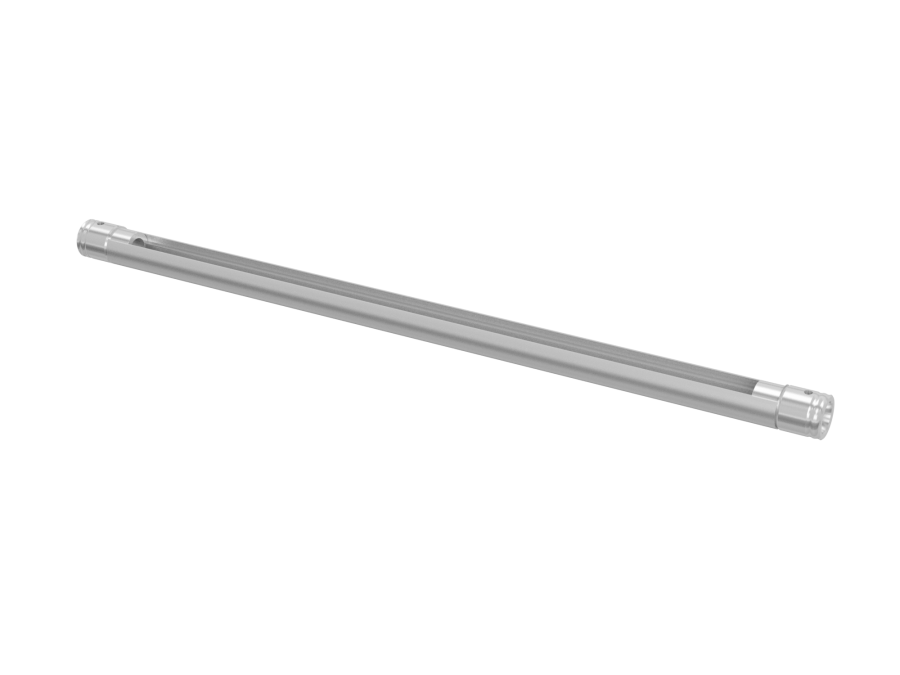

ET31

The ET31 system features a single tube with lighting track profile and Quicklock conical connection system on both ends to ensure compatibility and easy assembly with all our ET and FT Quicklock truss products. The profile of the tubes allows for insertion of a busbar and plugging into power sockets. Light fixtures can slide into the bar when equipped with a busbar connector. No additional cables are required.



Key features and benefits:



  • Single 50 x 2 mm (2 x 0.08 in) aluminum tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Quicklock connection system for fast and trouble-free assembly
  • Powder coat finish in any color on request
Specifications

TUBES

50 x 2 mm (2 x 0.08 in)

ALLLOY

EN AW-6082 T6
CEPowder coating available
