Products / ET Truss / ET32

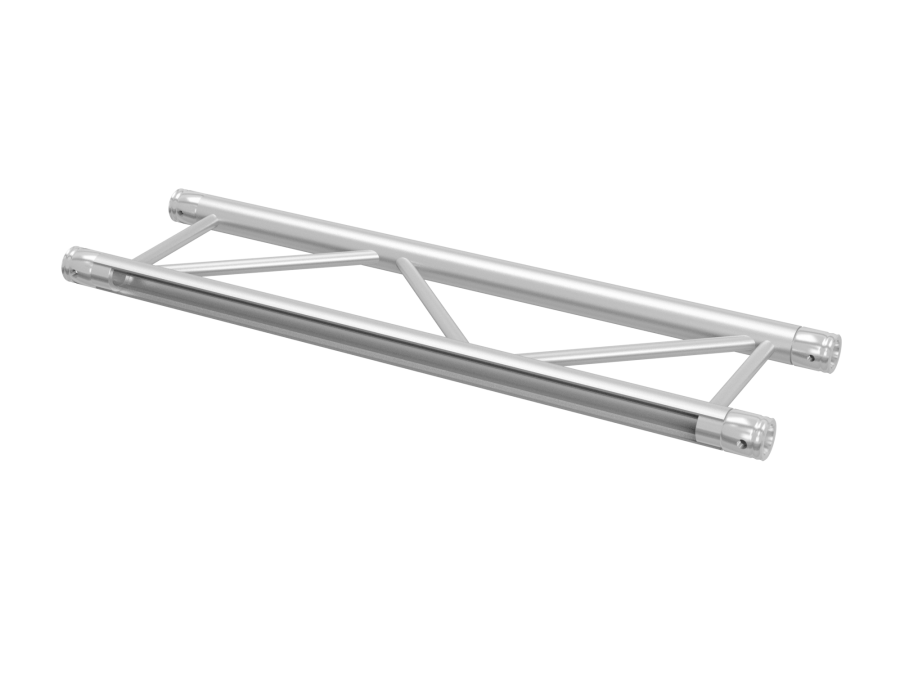

ET32

The ET32 system stands for a double tube trusss system with lighting track profile and conical fitting on both ends to ensure perfect compatibility and easy assembly with all our ET and FT quicklock trusssing products. The specific profile of the tubes makes it possible to insert the busbar into them and then plug it into power sockets. The lights can be simply slid into the bar when equipped with the busbar connector. No additional cables are needed. Great solution for various locations.



Key features and benefits:



  • 290 mm (11.42 inch) ladder truss
  • Certified 50 x 2 mm (2 in x 0.08 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap Clamps compatible (8102-8105)
  • Quicklock connection system for fast assembly
  • Powder coat finish in any color on request
Specifications

TUBES

50 x 2 mm (2 in x 0.08 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
