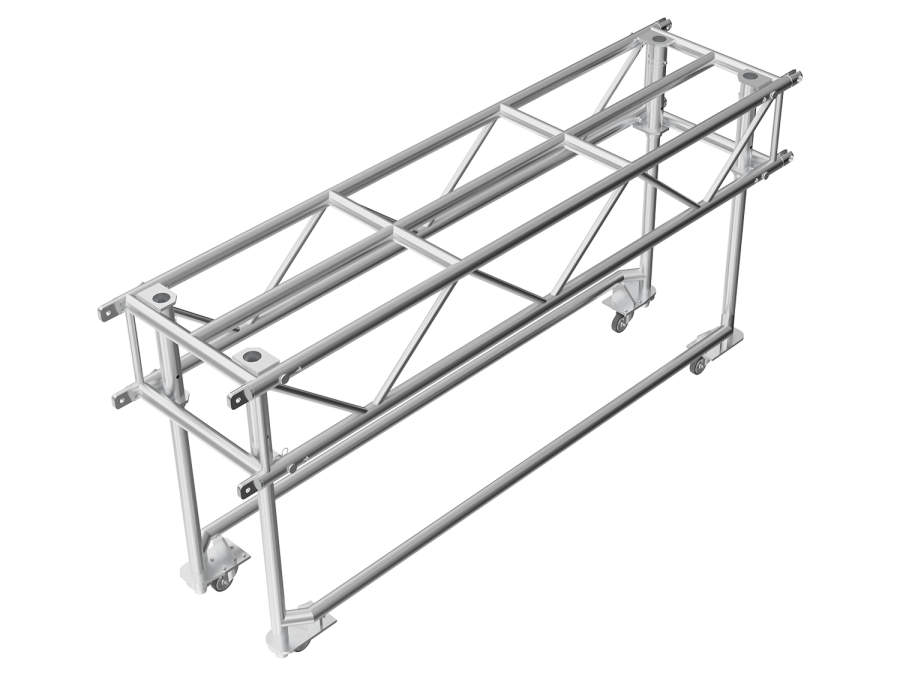

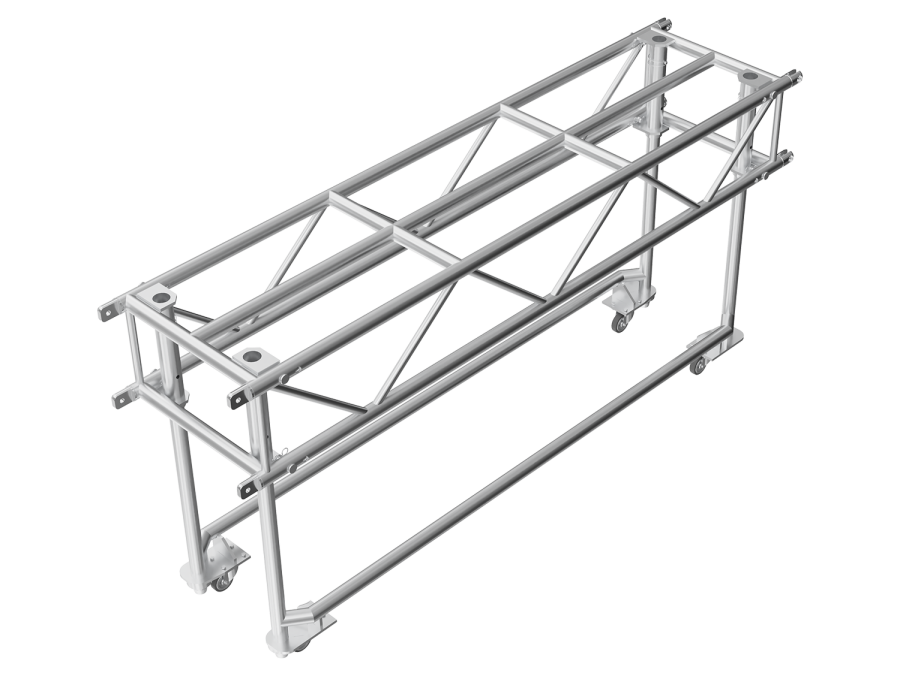

Pre-Rig Truss PR1

The PR1 stands for pre rig or touring trusses with male/female fork endings for stable and strong connection. There are two possible positions of the fork orientation - vertical and horizontal. Touring trusses represent great solution for keeping show equipment (lights, lasers, speakers, moving heads etc.) ready for set up at all times. The gadgets can be placed into the pre rig trusses and then, thanks to easy connection to dollies, moved around the set, warehouse or truck. The touring truss is used for both storage and stacking as well as rigging to main frames and structures in live productions.

Key features and benefits:
  • Pre-Rig rectangular truss  608 mm x 356 mm (23.94 in x 14.02 in)
  • Certified 48 mm x 4.5 mm (1.89 in x 0.18 in) tube
  • Available in 1.2 m (3.94 ft) and 2.4 m (7.87 ft)
  • Interior & exterior applications
  • Connection kit supplied
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Snap Clamps compatible (8102-8105)
  • Stack Clamps for easy stacking 8106, 8107
  • Powder coat color finish available on request



vertical connection horizontal connection°

Specifications

MAIN TUBE

48 x 4,5 mm (1.89 x 0.18 in)

BRACES

25 x 3 mm (0.98 x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
