LED SUPPORT

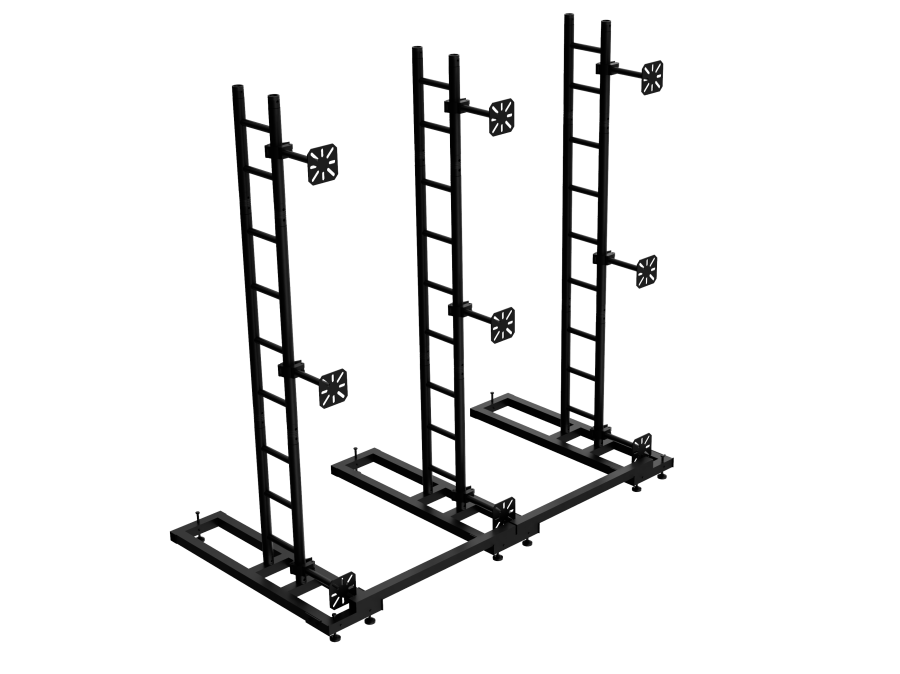

Suspend your LED screen in balanced and stable manner with our highly flexible support system. Aluminium base-unit, adjustable connection bar and ladder style trussing segments provide you a very stable support for hanging your entire LED screen board. The wall system is based on trussing line HT32 which gives it required stability as LED screens can be of larger sizes and thus imposing heavier loads on the system in total. The wall support is equipped with side-entry clamps including universal connection plate to mount different sizes of LED panels. This LED support is for indoors use.

Specifications

MAX. HEIGHT

4 m (13,1 ft)

BASE UNIT

50 x 50 x 3 mm profile with levelling feet (1,97 x 1,97 x 0,12 ft)

SEGMENTS

HT32 ladder truss 290 mm (11,4 ft) with 30 mm x 3 mm (1,18 ft x 0,12 ft) bracing, chords 50 mm x 3 mm (1,97 ft x 0,12 ft)

BALLAST

2 m (6,6 ft) – 20 kg/m (13,4 lbs/ft), 4 m (13,1 ft) – 150 kg/m (100,8 lbs/ft)

USAGE

Indoors
CEPowder coating available
