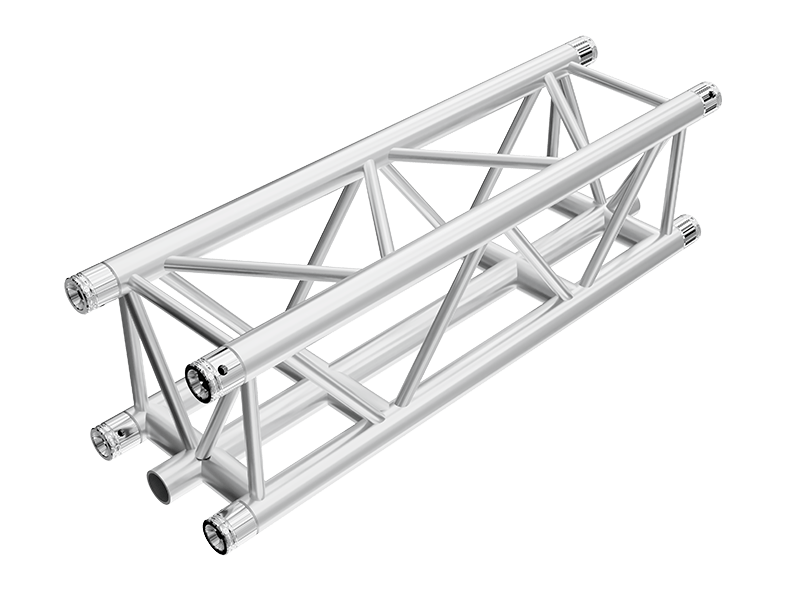

TT35

The TT35 truss line makes it easy to attach LED panels or screens directly on the central chord. Very strong and rigid truss with the special feature of an extra central rigging tube. Ladder style 50 mm horizontal braces offer more spatial possibilities for hanging equipment along the middle chord.



Key features and benefits:



  • 290 mm (11.42 in) square truss
  • Certified 50 x 4 mm (2 x 0.16 in) tube
  • Available in various lengths up to 5 m / 16.40 ft
  • Certified spans up to 20 m / 65.62 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Claw clamp 50 for in pipe welding on request
  • Snap clamp compatible (8102-8105)
  • Stack clamp for easy stacking (8106-8107)
  • Quicklock connection system for quick and easy assembly
  • Powder coat color finish available on request
Specifications

TUBES

50 x 4 mm (2 in x 0.16 in)

BRACES

20 x 2 mm (0.8 in x 0.08 in)

ALLOY

EN AW-6082 T6
TAF Static Approved CEPowder coating available
