FTB-L

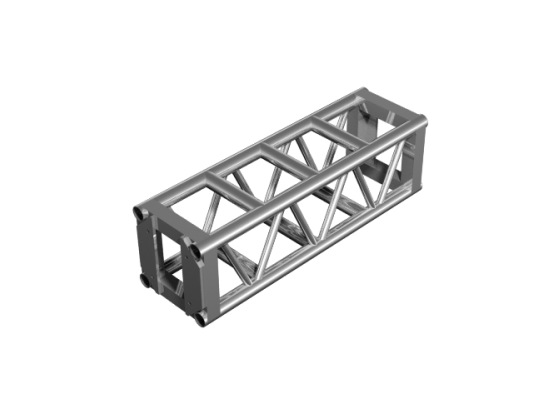

12 in x 12 in (305 x 305 mm) light-duty, bolted box truss. Fully compatible with other bolted truss brands. Two sides with beefy horizontal ladder braces and two sides with diagonal bracing.


Key features and benefits:



  • 12 in x 12 in (305 x 305 mm) bolted box truss
  • Available in various lengths up to 3.05 m / 10 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 truss clamps
  • Claw clamp 50 for in pipe welding on request
  • Compatible with Snap Clamps (8102-8105)
  • Bolted connection kit - bolts, nuts, washers
  • Powder coat finish in any color on request
Specifications

TUBES

50 mm x 3 mm (2 in x 0.12 in)

BRACES

25 mm x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
Bolted Truss TÜV Süd TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.

Contact us today
